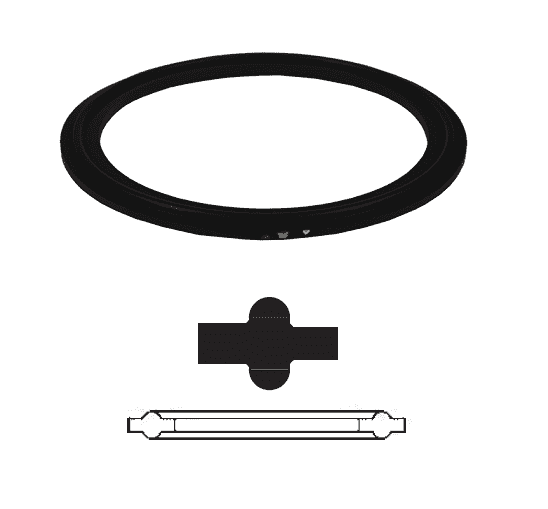

40MP-G1000 Dixon 10" PTFE Sanitary Clamp Gasket - White

40MP-G1000 Dixon Valve 10" PTFE Sanitary Clamp Gasket - White

Save $19.65 Save $19.65
$49.12
$49.12 - $49.12
$49.12
$29.47
$29.47 - $29.47
$29.47

Dixon Sanitary Clamp Gaskets - PTFE Clamp Gaskets - White

Specifications for Variant SKU: 40MP-G1000 Dixon
Seal Material(s): PTFE
Features:
  • Color Code: No dot
  • Meets 21CFR 177.1550
  • Passed U.S.P. Class VI Cytotoxicity testing.
  • not recommended for use with bolted clamps.
  • Gasket material approved by (3A), USDA.
  • PSI Service Ratings for the sanitary clamps DO NOT APPLY to connections (1" and above) using any PTFE gaskets, due to the potential for cold flow under normal operating conditions.
  • PTFE gaskets, when used with any clamp, are likely to leak at pressures far below the published service ratings. This restriction does not apply to the fractionally sized 1/2" and 3/4" connections, due to their recessed, fully contained design.
Sanitary Size Gasket ID Gasket OD OD of Clamp End ID of Fitting Sanitary Size Gasket ID Gasket OD OD of Clamp End ID of Fitting
1/2" 0.46 0.86 0.992 0.370 3" 2.870 3.579 3.579 2.870
3/4" 0.64 0.86 0.992 0.620 4" 3.834 4.682 4.682 3.834
1" 0.870 1.984 1.984 0.870 6" 5.782 6.562 6.562 5.782
1-1/2" 1.370 1.984 1.984 1.370 8" N/A N/A 8.602 7.782
2" 1.870 2.516 2.516 1.870 10" N/A N/A 10.570 9.782
2-1/2" 2.370 3.047 3.047 2.370 12" N/A N/A 12.570 11.760
Part Number Size Color Code Weight (Lbs.)
42MP-G50 1/2" No dot 0.0035
42MP-G75 3/4" No dot 0.0025
40MP-G100 1" No dot 0.0150
40MP-G150 1-1/2" No dot 0.0200
40MP-G200 2" No dot 0.0165
40MP-G250 2-1/2" No dot 0.0200
40MP-G300 3" No dot 0.0300
40MP-G400 4" No dot 0.0400
40MP-G500 5" No dot N/A
40MP-G600 6" No dot 0.0550
40MP-G800 8" No dot 0.0700
40MP-G1000 10" No dot 0.1000
40MP-G1200 12" No dot 0.1200
