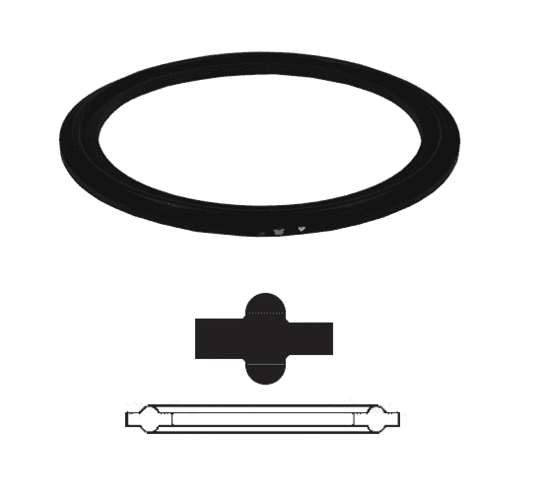

40MP-SFY500 Dixon Valve 5" FKM Sanitary Clamp Gasket - Black

40MP-SFY500 Dixon Valve 5" FKM Sanitary Clamp Gasket - Black

Save $11.25 Save $11.25
$31.06
$31.06 - $31.06
$31.06
$19.81
$19.81 - $19.81
$19.81

Dixon Sanitary Fittings Sanitary Clamp Gasket - FKM Clamp Gasket - Black
Specifications for Variant SKU: 40MP-SFY500 Dixon
Seal Material(s): Viton/FKM
Features:
  • Color code: one white dot, one yellow dot
  • Peroxide cured
  • Meets 21CFR 177.2600
  • Passed USP Class VI Cytotoxicity testing
Part Number Size Dimensions
Weight (Lbs.)
A B C
42MP-SFY50 1/2" - - - 0.0025
42MP-SFY75 3/4" - - - 0.0028
40MP-SFY100 1" 1.98" 0.90" 1.72" 0.0200
40MP-SFY150 1-1/2" 1.98" 1.40" 1.72" 0.0100
40MP-SFY200 2" 2.52" 1.90" 2.22" 0.0170
40MP-SFY250 2-1/2" 3.05" 2.40" 2.78" 0.0200
40MP-SFY300 3" 3.58" 2.90" 3.28" 0.0250
40MP-SFY400 4" 4.68" 3.87" 4.34" 0.0405
40MP-SFY500 5" - - - 0.0560
40MP-SFY600 6" 6.51" 5.82" 6.16" 0.0100
40MP-SFY800 8" - - - -
