40MP-UZ100 Dixon 1" Buna-N Sanitary Metal Detectable Clamp Gasket

40MP-UZ100 Dixon Valve 1" Buna-N Sanitary Metal Detectable Clamp Gasket

Save $0.63 Save $0.63
$1.50
$1.50 - $1.50
$1.50
$0.87
$0.87 - $0.87
$0.87

Dixon Sanitary Fittings Sanitary Metal Detectable Clamp Gasket - Buna-N Metal Detectable Clamp Gasket

Metal detectable gaskets are impregnated with stainless steel particles. The addition of stainless steel allows a gasket or gasket pieces to be found with metal detection equipment.
Specifications for Variant SKU: 40MP-UZ100 Dixon
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Metal Detectable
Features:
  • Good for general use where temperature extremes do not exist.
  • Minimum temperature: -20 deg. F
  • Maximum temperature: 212 deg. F

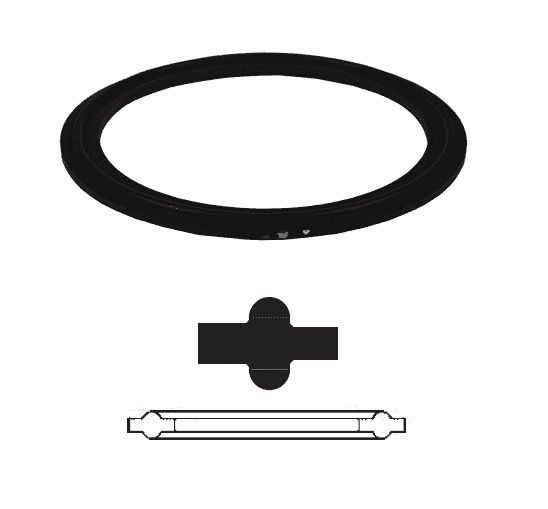

Part Number Size Dimensions
Weight (Lbs.)
A B C
40MP-UZ100 1" 1.98" 0.90" 1.72" 0.0150
40MP-UZ150 1-1/2" 1.98" 1.40" 1.72" 0.2500
40MP-UZ200 2" 2.52" 1.90" 2.22" 0.0040
40MP-UZ250 2-1/2" 3.05" 2.40" 2.78" 0.0050
40MP-UZ300 3" 3.58" 2.90" 3.28" 0.0060
40MP-UZ400 4" 4.68" 3.87" 4.34" 0.7500
40MP-UZ600 6" 6.51" 5.82" 6.16" 0.0500
40MP-UZ800 8" - - - 0.0500
40MP-UZ1000 10" - - - 0.0500
40MP-UZ1200 12" - - - 0.0500
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
