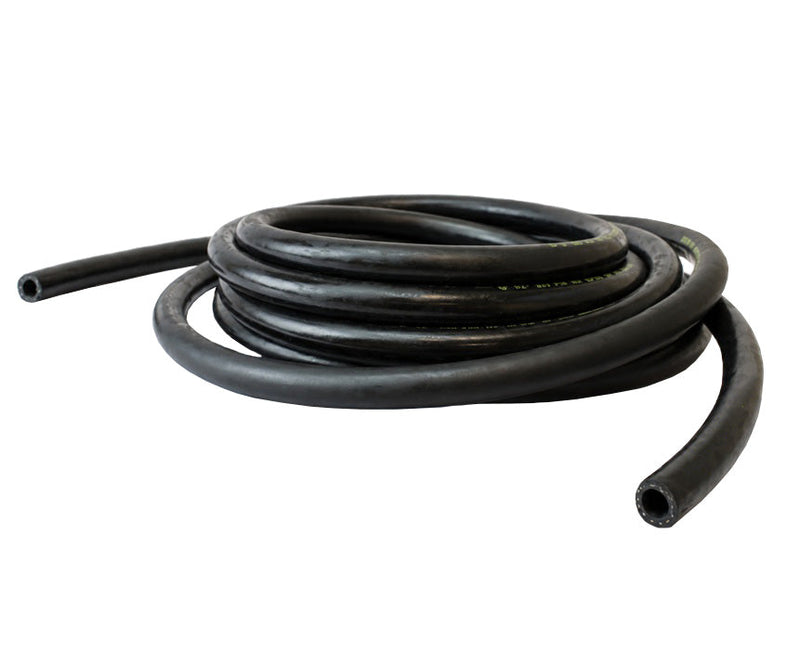

4125-12-300 by Jason Industrial | 4125 Series | Air/Water Hose | EPDM/SBR Rubber | 3/4" ID | 1.14" OD | 300 PSI | Black | 300ft

4125-12-300 by Jason Industrial | 4125 Series | Air/Water Hose | EPDM/SBR Rubber | 3/4" ID | 1.14" OD | 300 PSI | Black | 300ft

Save $442.01 Save $442.01
$983.81
$983.81 - $983.81
$983.81
$541.80
$541.80 - $541.80
$541.80

Jason Industrial
4125 Series | Air/Water Hose | Black

An economical general service hose for air and water in industrial, agricultural and construction applications.

Package Quantity: 300 FT

Specifications for Variant SKU: 4125-12-300 Jason | 300 |
Series: 4125 Series
Hose Color(s): Black
Internal Diameter: 0.75in
Outer Diameter: 1.14in
Tubing Construction: SBR/EPDM Blend
Cover Construction: SBR/EPDM Blend
Air/Multipurpose Hose

Jason Industrial | 4125 Series | Air/Water Hose

1

What is this product used for?
  • Air and water in industrial, agricultural and construction applications.
2

What are the key specifications?
Tube

EPDM/SBR

Cover

Black EPDM/SBR

Reinforcement

Two-spiral polyester yarn.

Temperature Range

-14°F (-26°C) to +180°F (+82°C)

Colors

Black

Branding

JASON logo ID in. 300PSI WP GP AIR WATER - Yellow ink on black cover and black ink on red cover

Specifications

N/A

Design Factor

3:1

3

What are the main product features?
  • Excellent temperature resistance.
  • Abrasion and ozone resistant.
  • Flexible and easy to handle.
4

Which sizes or configurations are available?
4125 Series | Black Cover
Part Number ID OD Reinf.
Braids		 Max. Working
Pressure @ 68° F		 Vacuum @ 68°F
(in of Hg)		 Weight
(lbs/ft)		 Minimum
Bend
Radius
in mm in mm PSI BAR in mm
4125-04-600 1/4" 6.35mm 0.49" 12.50mm 2 300 PSI 24.13 BAR — 0.10 lbs 1.50" 38.10mm
4125-05-600 5/16" 7.94mm 0.57" 14.50mm 2 300 PSI 24.13 BAR — 0.12 lbs 2.00" 50.80mm
4125-06-600 3/8" 9.53mm 0.65" 16.50mm 2 300 PSI 24.13 BAR — 0.17 lbs 2.25" 57.15mm
4125-08-600 1/2" 12.70mm 0.81" 20.50mm 2 300 PSI 24.13 BAR — 0.22 lbs 3.00" 76.20mm
4125-10-300 5/8" 15.88mm 0.96" 24.50mm 2 300 PSI 24.13 BAR — 0.30 lbs 3.75" 95.25mm
4125-12-300 3/4" 19.05mm 1.14" 29.00mm 2 300 PSI 24.13 BAR — 0.37 lbs 4.50" 114.50mm
4125-16-300 1" 25.40mm 1.38" 35.00mm 2 300 PSI 24.13 BAR — 0.58 lbs 7.00" 177.80mm
4129 Series | Red Cover
Part Number ID OD Reinf.
Braids		 Max. Working
Pressure @ 68° F		 Vacuum @ 68°F
(in of Hg)		 Weight
(lbs/ft)		 Minimum
Bend
Radius
in mm in mm PSI BAR in mm
4129-04-600 1/4" 6.35mm 0.49" 12.50mm 2 300 PSI 24.13 BAR — 0.10 lbs 1.50" 38.10mm
4129-05-600 5/16" 7.94mm 0.57" 14.50mm 2 300 PSI 24.13 BAR — 0.12 lbs 2.00" 50.80mm
4129-06-600 3/8" 9.53mm 0.65" 16.50mm 2 300 PSI 24.13 BAR — 0.17 lbs 2.25" 57.15mm
4129-08-600 1/2" 12.70mm 0.81" 20.50mm 2 300 PSI 24.13 BAR — 0.22 lbs 3.00" 76.20mm
4129-10-300 5/8" 15.88mm 0.96" 24.50mm 2 300 PSI 24.13 BAR — 0.30 lbs 3.75" 95.25mm
4129-12-300 3/4" 19.05mm 1.14" 29.00mm 2 300 PSI 24.13 BAR — 0.37 lbs 4.50" 114.50mm
4129-16-300 1" 25.40mm 1.38" 35.00mm 2 300 PSI 24.13 BAR — 0.58 lbs 7.00" 177.80mm
WARNING: Working pressure (W.P.) is temperature dependent.
i
No by the foot sales. This is a Packaged Length product.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
