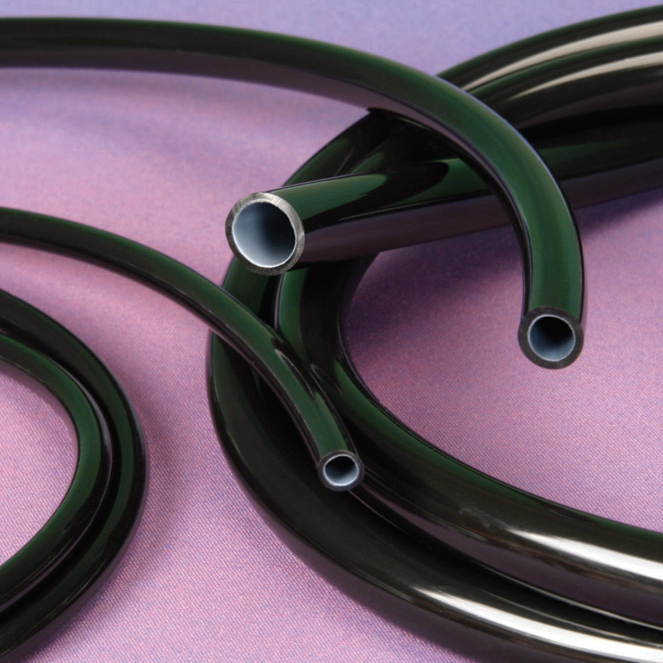

4130091-500 Co-Extruded Hytrel® by NewAge | Lined PVC Tubing | 0.170" ID x 1/4" OD x 0.040" Wall | Light Blue(Liner)/Black(Cover) | 500ft

Save $14.08

$274.08

$274.08 - $274.08

$274.08

$260.00

$260.00 - $260.00

$260.00

PRODUCT DESCRIPTION

NewAge Industries - Co-extruded Hytrel® Lined PVC Tubing

Package Quantity: 500 FT

Quantity

Specifications for Variant SKU: 4130091-500 NewAge \| 500 \|
Brand:	Hytrel
Hose Color(s):	Blue & Black
Internal Diameter:	0.17in
Outer Diameter:	0.25in
Tubing Construction:	PVC
Applicable Specs & Approvals:	Applicable FDA Requirements

SPECIFICATIONS

Other Features:
Application:	Aerospace Equipment*, Air Sampling, Appliances, Computer Equipment, Floor Care Equipment, Fluid Transfer, Laboratories, Lawn & Garden Equipment, Packaging Equipment, Potable Water, Propane Gas Delivery, Solvents, Thermal Protection, Vending Machines, Welding Gases TIG/MIG/MAP	Tube:	Hytrel®
Reinforcement:	N/A	Cover:	PVC
Temperature Range:	160°F	Color:	Light Blue(Liner)/Black(Cover)
Opacity:	Opaque	Specifications	FDA
Made from FDA-compliant ingredients; suitable for food contact Does not contain plasticizers Hytrel liner resists high temperatures and oils, making it ideal for hot beverage vending machine applications ow permeability to refrigerant gases, hydrocarbons and moisture Superior barrier and dielectric characteristics - well suited for welding applications Odorless, tasteless, and inert Good weathering properties - resists U.V. exposure, ozone, gases, moisture and temperatures Low adherence of particulates - ideal for air sampling Ethylene Oxide (EtO) sterilizable Hytrel liner is REACH compliant Made in the USA
Notes:
HYTREL-LINED PVC TUBING is designed to offer the flexibility and durability of PVC tubing with a liner of inert Hytrel, made by DuPont, for additional resistance to oils, high temperatures and gas permeability. A patented process molecularly bonds liner and cover to make a virtually inseparable product. This cost-saving co-extrusion permits HYTREL-LINED PVC to be substituted for all-Hytrel tubing in many applications. The Hytrel polyester liner offers internal resistance to chemical attack, abrasion and contamination, along with a high degree of resistivity to the adherence of particulates, making HYTREL-LINED PVC exceptionally suited for use in air sampling applications. HYTREL-LINED PVC TUBING's black PVC cover offers excellent resistance to abrasion and oils, as well as ultraviolet exposure. The pliable PVC also provides a degree of shock resistance and insulates the tubing from electronic interference. HYTREL-LINED PVC TUBING is made of FDA-sanctioned ingredients for use with food contact surfaces. The tubing is certified for CFR Title 21 Section 177.1550 and CFR Title 21 Section 177.2600. It may be subjected to ethylene oxide sterilization processes.

Physical Properties**
	Hytrel Liner	PVC Cover
Shore Hardness	55D	80A
Tensile Strength, psi	6000	2000
Elongation at Break, %	500	360
Brittle Temperature	-148°F	-25.6°F
Max. Operating Temperature	160°F	160°F
Color	Light Blue	Black

**Values listed are typical and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for the application.

Part Number	Material	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)	Length	Weight (lbs/100ft)
4130091-500	Hytrel (liner)/ PVC (cover)	0.170"	0.250" (1/4")	0.040"	500ft	3 Lbs
4130133-500	Hytrel (liner)/ PVC (cover)	0.250" (1/4")	0.375" (3/8")	0.063" (1/16")	500ft	4.2 Lbs
4130217-250	Hytrel (liner)/ PVC (cover)	0.375" (3/8")	0.500" (1/2")	0.063" (1/16")	250ft	6 Lbs
