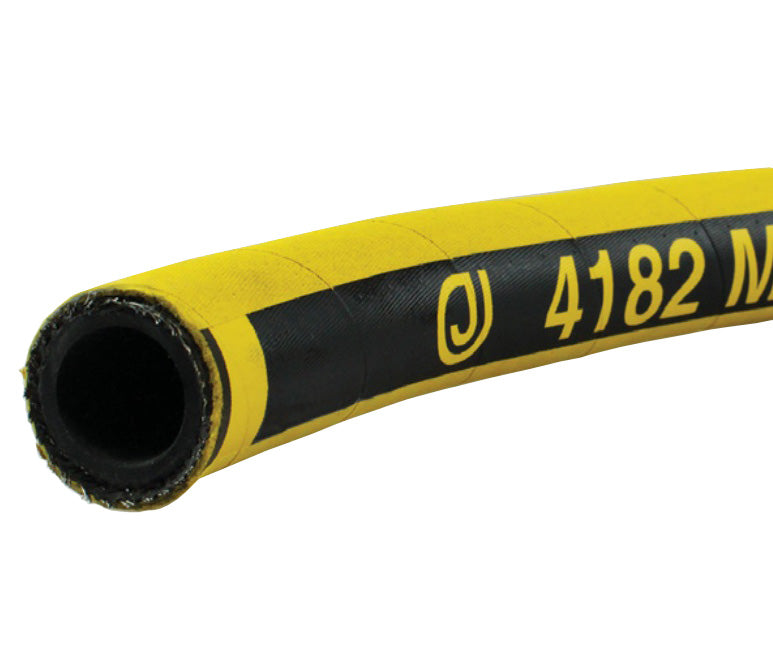

4182-0075-050 by Jason Industrial | 4182 Series | MSHA Mine Spray Hose | NBR/SBR | 3/4" ID | 1.22" OD | 1000 PSI | Yellow | 50ft

Save $64.42

$245.16

$245.16 - $245.16

$245.16

$180.74

$180.74 - $180.74

$180.74

Jason Industrial
4182 Series | MSHA Mine Spray Hose | Yellow

For dust control in underground water spray operations.

Package Quantity: 50 FT

Specifications for Variant SKU: 4182-0075-050 Jason \| 50 \|
Series:	4182 Series
Hose Color(s):	Yellow
Internal Diameter:	0.75in
Outer Diameter:	1.22in
Tubing Construction:	NR/SBR Blend
Cover Construction:	Chloroprene
Applicable Specs & Approvals:	MSHA IC-84-42
Special Properties:	Pin Pricked Hose Cover

Underground Mining Hose

Jason Industrial | 4182 Series
MSHA Mine Spray Hose

1

What is this product used for?

For dust control in underground water spray operations.

2

What are the key specifications?

Tube

NBR/SBR tube, Smooth, Black

Cover

CR, Fabric Impression, Pinpricked, Yellow

Reinforcement

Two Plies of Steel Wire

Temperature Range

-22°F (-30°C) to +194°F (+90°C)

Colors

Yellow

Branding

Jason logo 4182 MINE SPRAY MSHA IC-84-42 1000 PSI WP 69 BAR. Black longitudinal stripe.

Specifications

Meets MSHA rating IC-84-42

Design Factor

3:1

3

What are the main product features?

Meets MSHA rating IC-84-42.
Flame retardant.
Visible yellow color.
Cover is weather and abrasion resistant.

4

Which sizes or configurations are available?

Part Number 50ft	Part Number 100ft	ID		OD		Reinfor- cement Plies	Max. Working Pressure @ 68° F		Vacuum @ 68°F	Weight (lbs/ft)	Minimum Bend Radius
Part Number 50ft	Part Number 100ft	in	mm	in	mm	Reinfor- cement Plies	PSI	BAR	in of Hg	Weight (lbs/ft)	in	mm
4182-0050-050	4182-0050-100	1/2"	12.70mm	0.97"	24.60mm	2	1000 PSI	68.95 BAR	—	0.40lbs	5.90"	150.00mm
4182-0075-050	4182-0075-100	3/4"	19.05mm	1.22"	30.99mm	2	1000 PSI	68.95 BAR	—	0.60lbs	8.30"	210.00mm
4182-0100-050	4182-0100-100	1"	25.40mm	1.49"	37.85mm	2	1000 PSI	68.95 BAR	—	0.80lbs	11.00"	280.00mm
4182-0125-050	4182-0125-100	1-1/4"	31.75mm	1.81"	45.97mm	2	1000 PSI	68.95 BAR	—	1.05lbs	14.00"	355.00mm
4182-0150-050	4182-0150-100	1-1/2"	38.10mm	2.04"	51.82mm	2	1000 PSI	68.95 BAR	—	1.24lbs	16.50"	420.00mm
4182-0200-050	4182-0200-100	2"	50.80mm	2.60"	66.04mm	2	1000 PSI	68.95 BAR	—	1.80lbs	22.00"	560.00mm

i

No by the foot sales. This is a Packaged Length product.
