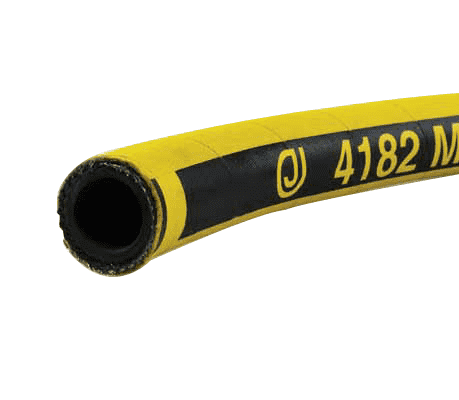

4182-0075-100 by Jason Industrial | 4182 Series | MSHA Mine Spray Hose | 1000 PSI | 3/4" ID | 1.22" OD | Yellow | NBR/SBR | 100ft

Save $3.74

$347.74

$347.74 - $347.74

$347.74

$344.00

$344.00 - $344.00

$344.00

Jason Industrial Inc. Hose - Material Handling Hose - 4182 MSHA Mine Spray Hose - Yellow

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 4182-0075-100 Jason \| 100 \|
Series:	4182 Series
Hose Color(s):	Yellow
Internal Diameter:	0.75in
Outer Diameter:	1.22in
Tubing Construction:	SBR
Cover Construction:	Chloroprene
Applicable Specs & Approvals:	Applicable MSHA Standards
Special Properties:	Pin Pricked Hose Cover

SPECIFICATIONS

Other Features:
Application:	For dust control in underground water spray operations	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	SBR, Smooth, Black
Reinforcement:	Two Plies of Steel Wire	Cover:	CR, Fabric Impression, Pin-Pricked, Yellow
Temperature Range:	-0 deg. F (-18 deg. C) to +200 deg. F (+93 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4182 MINE SPRAY MSHA IC-84-42 1000 PSI WP 69 BAR. Black longitudinal stripe
Meets MSHA rating IC-84-42 Flame retardant Visible yellow color Cover is weather and abrasion resistant

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4182-0050-050	1/2"	12.70mm	0.97"	24.60mm	2	1000 PSI	68.95 BAR	N/A	0.40 lb./ft.	0.60 KG/m	5.90"	150.00mm	50ft
4182-0075-050	3/4"	19.05mm	1.22"	30.99mm	2	1000 PSI	68.95 BAR	N/A	0.60 lb./ft.	0.89 KG/m	8.30"	210.00mm	50ft
4182-0075-100	3/4"	19.05mm	1.22"	30.99mm	2	1000 PSI	68.95 BAR	N/A	0.60 lb./ft.	0.89 KG/m	8.30"	210.00mm	100ft
4182-0100-050	1"	25.40mm	1.49"	37.85mm	2	1000 PSI	68.95 BAR	N/A	0.80 lb./ft.	1.19 KG/m	11.00"	280.00mm	50ft
4182-0100-100	1"	25.40mm	1.49"	37.85mm	2	1000 PSI	68.95 BAR	N/A	0.80 lb./ft.	1.19 KG/m	11.00"	280.00mm	100ft
4182-0125-050	1-1/4"	31.75mm	1.81"	45.97mm	2	1000 PSI	68.95 BAR	N/A	1.05 lb./ft.	1.56 KG/m	14.00"	355.00mm	50ft
4182-0125-100	1-1/4"	31.75mm	1.81"	45.97mm	2	1000 PSI	68.95 BAR	N/A	1.05 lb./ft.	1.56 KG/m	14.00"	355.00mm	100ft
4182-0150-050	1-1/2"	38.10mm	2.04"	51.82mm	2	1000 PSI	68.95 BAR	N/A	1.24 lb./ft.	1.85 KG/m	16.50"	420.00mm	50ft
4182-0150-100	1-1/2"	38.10mm	2.04"	51.82mm	2	1000 PSI	68.95 BAR	N/A	1.24 lb./ft.	1.85 KG/m	16.50"	420.00mm	100ft
4182-0200-050	2"	50.80mm	2.60"	66.04mm	2	1000 PSI	68.95 BAR	N/A	1.80 lb./ft.	2.68 KG/m	22.00"	560.00mm	50ft
4182-0200-100	2"	50.80mm	2.60"	66.04mm	2	1000 PSI	68.95 BAR	N/A	1.80 lb./ft.	2.68 KG/m	22.00"	560.00mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
