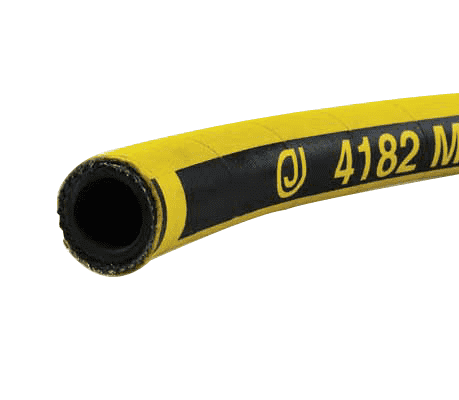

4182-0200-100 by Jason Industrial | 4182 Series | MSHA Mine Spray Hose | 1000 PSI | 2" ID | 2.60" OD | Yellow | NBR/SBR | 100ft

Save $11.70

$1,143.70

$1,143.70 - $1,143.70

$1,143.70

$1,132.00

$1,132.00 - $1,132.00

$1,132.00

Jason Industrial Inc. Hose - Material Handling Hose - 4182 MSHA Mine Spray Hose - Yellow

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 4182-0200-100 Jason \| 100 \|
Series:	4182 Series
Hose Color(s):	Yellow
Internal Diameter:	2in
Outer Diameter:	2.60in
Tubing Construction:	SBR
Cover Construction:	Chloroprene
Applicable Specs & Approvals:	Applicable MSHA Standards
Special Properties:	Pin Pricked Hose Cover

SPECIFICATIONS

Other Features:
Application:	For dust control in underground water spray operations	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	SBR, Smooth, Black
Reinforcement:	Two Plies of Steel Wire	Cover:	CR, Fabric Impression, Pin-Pricked, Yellow
Temperature Range:	-0 deg. F (-18 deg. C) to +200 deg. F (+93 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4182 MINE SPRAY MSHA IC-84-42 1000 PSI WP 69 BAR. Black longitudinal stripe
Meets MSHA rating IC-84-42 Flame retardant Visible yellow color Cover is weather and abrasion resistant

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4182-0050-050	1/2"	12.70mm	0.97"	24.60mm	2	1000 PSI	68.95 BAR	N/A	0.40 lb./ft.	0.60 KG/m	5.90"	150.00mm	50ft
4182-0075-050	3/4"	19.05mm	1.22"	30.99mm	2	1000 PSI	68.95 BAR	N/A	0.60 lb./ft.	0.89 KG/m	8.30"	210.00mm	50ft
4182-0075-100	3/4"	19.05mm	1.22"	30.99mm	2	1000 PSI	68.95 BAR	N/A	0.60 lb./ft.	0.89 KG/m	8.30"	210.00mm	100ft
4182-0100-050	1"	25.40mm	1.49"	37.85mm	2	1000 PSI	68.95 BAR	N/A	0.80 lb./ft.	1.19 KG/m	11.00"	280.00mm	50ft
4182-0100-100	1"	25.40mm	1.49"	37.85mm	2	1000 PSI	68.95 BAR	N/A	0.80 lb./ft.	1.19 KG/m	11.00"	280.00mm	100ft
4182-0125-050	1-1/4"	31.75mm	1.81"	45.97mm	2	1000 PSI	68.95 BAR	N/A	1.05 lb./ft.	1.56 KG/m	14.00"	355.00mm	50ft
4182-0125-100	1-1/4"	31.75mm	1.81"	45.97mm	2	1000 PSI	68.95 BAR	N/A	1.05 lb./ft.	1.56 KG/m	14.00"	355.00mm	100ft
4182-0150-050	1-1/2"	38.10mm	2.04"	51.82mm	2	1000 PSI	68.95 BAR	N/A	1.24 lb./ft.	1.85 KG/m	16.50"	420.00mm	50ft
4182-0150-100	1-1/2"	38.10mm	2.04"	51.82mm	2	1000 PSI	68.95 BAR	N/A	1.24 lb./ft.	1.85 KG/m	16.50"	420.00mm	100ft
4182-0200-050	2"	50.80mm	2.60"	66.04mm	2	1000 PSI	68.95 BAR	N/A	1.80 lb./ft.	2.68 KG/m	22.00"	560.00mm	50ft
4182-0200-100	2"	50.80mm	2.60"	66.04mm	2	1000 PSI	68.95 BAR	N/A	1.80 lb./ft.	2.68 KG/m	22.00"	560.00mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
