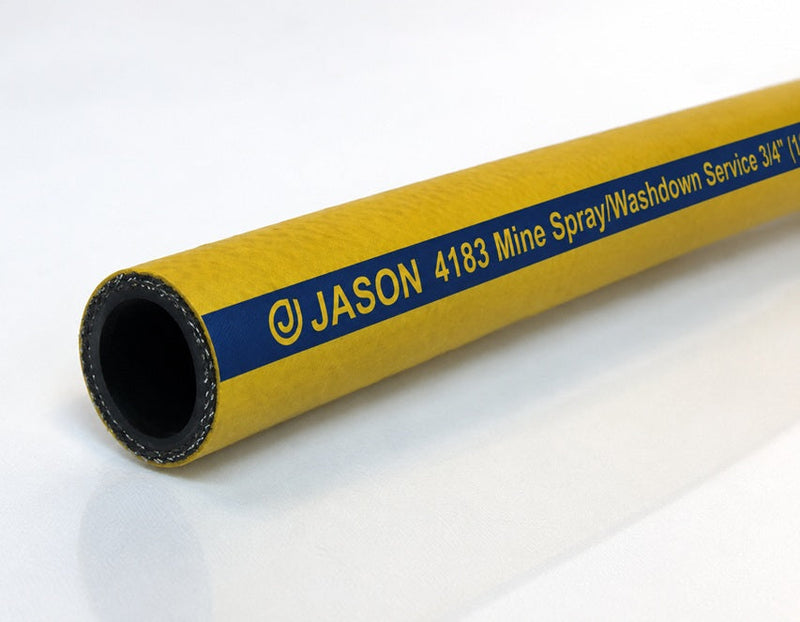

4183-0100-200 by Jason Industrial | 4183 Series | Washdown Service/MSHA Mine Spray Hose | with Smooth Cover | NBR/PVC | 1" ID | 1.45" OD | 1000 PSI | Yellow | 200ft

Save $524.15

$1,239.70

$1,239.70 - $1,239.70

$1,239.70

$715.55

$715.55 - $715.55

$715.55

Jason Industrial
4183 Series | Washdown Service/MSHA Mine Spray Hose | Yellow

For general washdown service as well as dust control in mining operations.

Package Quantity: 200 FT

Specifications for Variant SKU: 4183-0100-200 Jason \| 200 \|
Series:	4183 Series
Hose Color(s):	Yellow
Internal Diameter:	1in
Outer Diameter:	1.45in
Tubing Construction:	NBR
Cover Construction:	NBR/PVC Blend
Applicable Specs & Approvals:	Applicable MSHA Standards
Special Properties:	Pin Pricked Hose Cover

Underground Mining Hose

Jason Industrial | 4183 Series
Washdown Service/MSHA Mine Spray Hose

1

What is this product used for?

For general washdown service as well as dust control in mining operations.

2

What are the key specifications?

Tube

NBR Synthetic Rubber (ARPM Class B)

Cover

NBR/PVC Synthetic Rubber (ARPM Class B) Yellow color, MSHA approved, Pin-Pricked

Reinforcement

1/2" to 1-1/4" - 1 Steel Wire Braid
1-1/2" to 2" - 2 Steel Wire Braid

Temperature Range

-40°F to +212°F (-40°C to +100°C)

Colors

Yellow

Branding

J (logo) Jason 4183 Mine Spray/Washdown Service (I.D. in inch & mm) 1000 PSI (69 Bar) WP, Fire Resistant, MSHA IC-304/04 Blue longitudinal stripe

Specifications

Meets MSHA flame resistance requirements.

Design Factor

4:1

3

What are the main product features?

Meets MSHA flame resistance requirements.
High visibility yellow cover.
Cover is weather and abrasion resistant.
Approved for use with Jason 12 Series hose couplings.

4

Which sizes or configurations are available?

Part Number	ID		OD		Reinfor- cement Plies	Cover	Max. Working Pressure @ 68° F		Vacuum @ 68°F	Weight (lbs/ft)	Minimum Bend Radius		Length
Part Number	in	mm	in	mm	Reinfor- cement Plies	Cover	PSI	BAR	in of Hg	Weight (lbs/ft)	in	mm	Length
4183-0050-400	1/2"	12.70mm	0.84"	21.30mm	1	Smooth	1000 PSI	69.0 BAR	—	0.28lbs	5.90"	150mm	400ft
4183-0075-300	3/4"	19.0mm	1.14"	29.0mm	1	Smooth	1000 PSI	69.0 BAR	—	0.44lbs	7.90"	200mm	300ft
4183-0100-200	1"	25.4mm	1.45"	36.8mm	1	Smooth	1000 PSI	69.0 BAR	—	0.65lbs	9.8"	250mm	200ft
4183-0125-150	1-1/4"	31.8mm	1.75"	44.5mm	1	Wrapped	1000 PSI	69.0 BAR	—	0.89lbs	11.8"	300mm	150ft
4183-0150-150	1-1/2"	38.1mm	1.98"	50.3mm	2	Wrapped	1000 PSI	69.0 BAR	—	0.99lbs	15.7"	400mm	150ft
4183-0200-150	2"	50.8mm	2.52"	64.0mm	2	Wrapped	1000 PSI	69.0 BAR	—	1.38lbs	19.7"	500mm	150ft

i

No by the foot sales. This is a Packaged Length product.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
