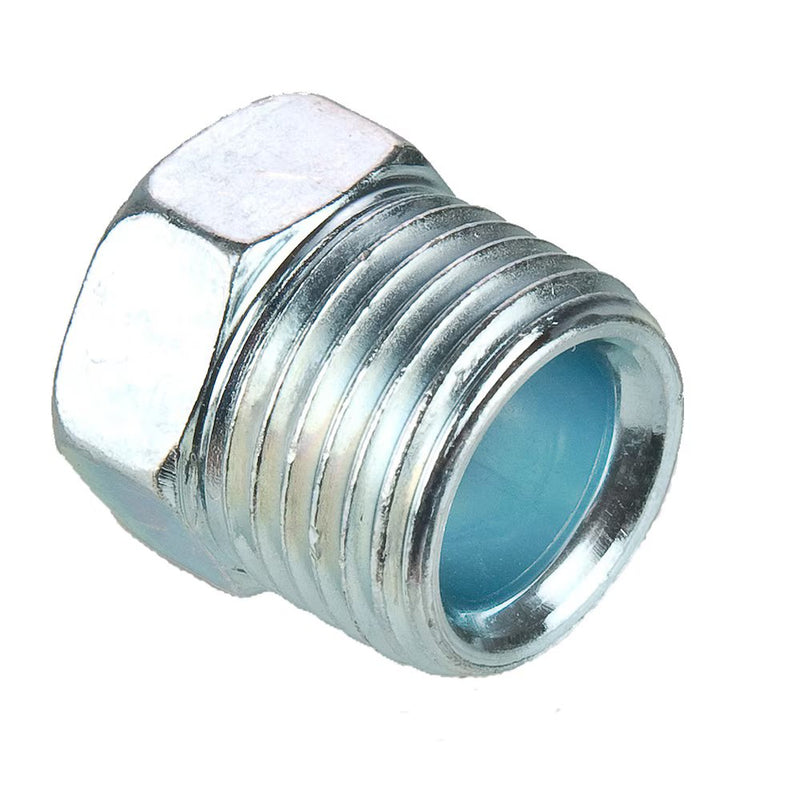

41IFF-4 by Parker | Inverted Flare Fittings | 1/4" Inverted Flare | 7/16" Hex | .56" Length | Nut | Straight | Brass | Pack of 50

41IFF-4 by Parker | Inverted Flare Fittings | 1/4" Inverted Flare | 7/16" Hex | .56" Length | Nut | Straight | Brass | Pack of 50

Save $44.66 Save $44.66
$386.66
$386.66 - $386.66
$386.66
$342.00
$342.00 - $342.00
$342.00

by Parker Hannifin
Inverted Flared Fittings:Piloted Nut 41IFF for Single Flared Tubing

Package Quantity: 50 Units

Specifications for Variant SKU: 41IFF-4 Parker | 50 |
Series: 41IFF Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Fuel Grade, UL Listed
Product Features:
  • All brass construction
  • UL listed for flammable liquid and gas
  • Meets functional requirements of SAE J512
  • Steel nut for economy
Markets:
  • Air Conditioning
  • Marine
  • Mobile
  • Engines
Applications:
  • Refrigerant Lines
  • Brake Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Aluminum
  • Welded Steel Hydraulic Tubing
Part Number Tube Size Straight Thread Hex (C) L D
41IFF-2 1/8" 5/16"-28 5/16" .52" .133"
41IFF-3 3/16" 3/8"-24 3/8" .56" .196"
41IFF-4 1/4" 7/16"-24 7/16" .56" .259"
41IFF-5 5/16" 1/2"-20 1/2" .62" .321"
41IFF-6 3/8" 5/8"-18 5/8" .66" .384"
41IFF-8 1/2" 3/4"-28 3/4" .74" .508"
