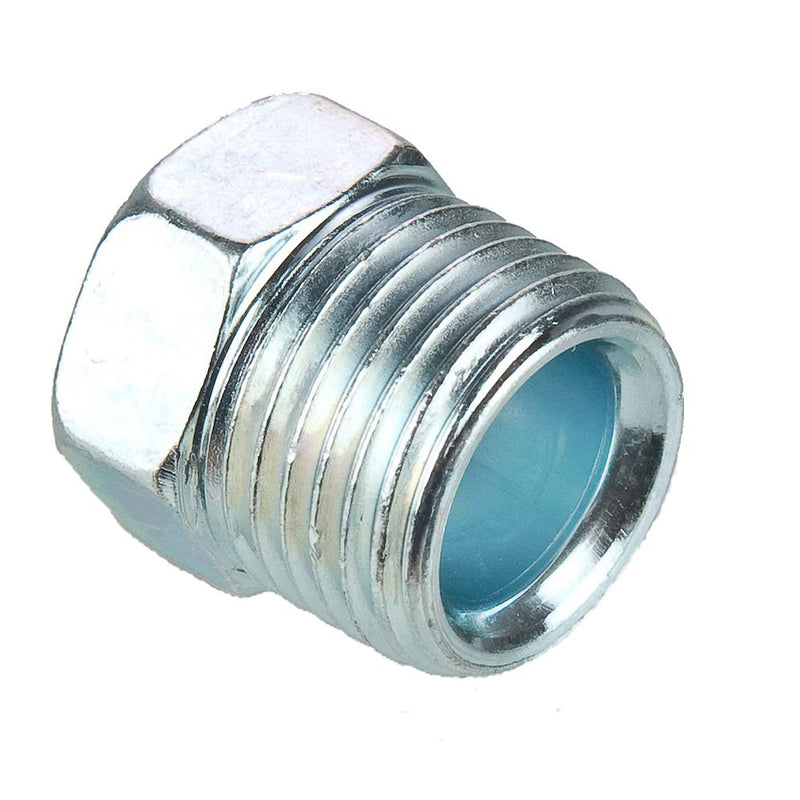

41IFF-6 by Parker | Inverted Flare Fittings | 3/8" Inverted Flare | 5/8" Hex | .66" Length | Nut | Straight | Brass | Pack of 25

Save $49.22

$425.22

$425.22 - $425.22

$425.22

$376.00

$376.00 - $376.00

$376.00

by Parker Hannifin
Inverted Flared Fittings:Piloted Nut 41IFF for Single Flared Tubing

Package Quantity: 25 Units

Specifications for Variant SKU: 41IFF-6 Parker \| 25 \|
Series:	41IFF Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade, UL Listed

Specification:
Product Features:	All brass construction UL listed for flammable liquid and gas Meets functional requirements of SAE J512 Steel nut for economy
Markets:	Air Conditioning Marine Mobile Engines
Applications:	Refrigerant Lines Brake Lines Fuel Lines
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Pressure Range:	See Chart Below

Compatible Tubing:	Copper Brass Aluminum Welded Steel Hydraulic Tubing


Part Number	Tube Size	Straight Thread	Hex (C)	L	D
41IFF-2	1/8"	5/16"-28	5/16"	.52"	.133"
41IFF-3	3/16"	3/8"-24	3/8"	.56"	.196"
41IFF-4	1/4"	7/16"-24	7/16"	.56"	.259"
41IFF-5	5/16"	1/2"-20	1/2"	.62"	.321"
41IFF-6	3/8"	5/8"-18	5/8"	.66"	.384"
41IFF-8	1/2"	3/4"-28	3/4"	.74"	.508"
