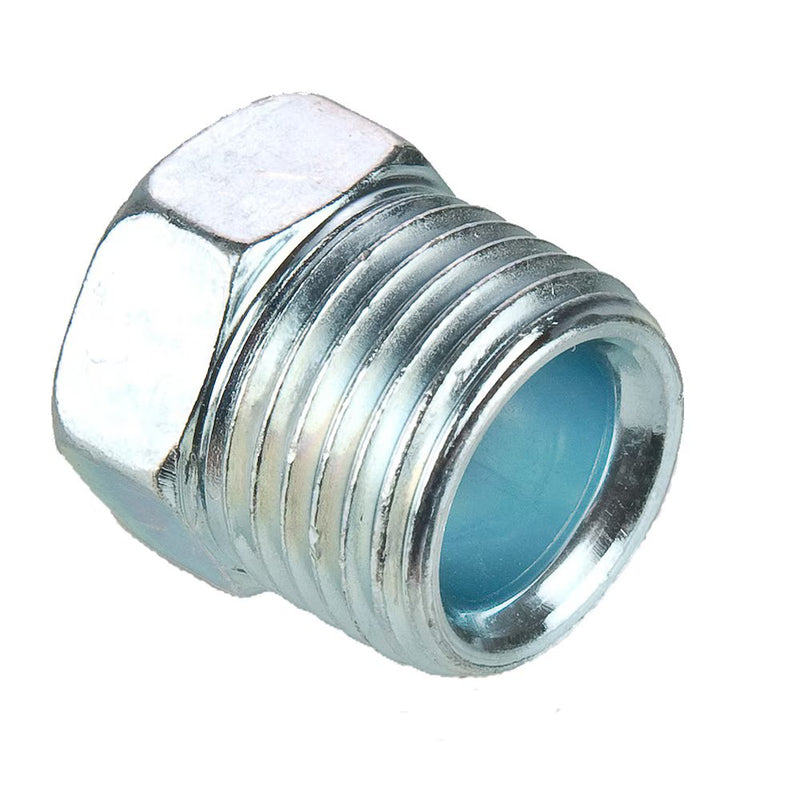

41IFF-8 by Parker | Inverted Flare Fittings | 1/2" Inverted Flare | 3/4" Hex | .74" Length | Nut | Straight | Brass | Pack of 25

41IFF-8 by Parker | Inverted Flare Fittings | 1/2" Inverted Flare | 3/4" Hex | .74" Length | Nut | Straight | Brass | Pack of 25

Save $63.33 Save $63.33
$563.33
$563.33 - $563.33
$563.33
$500.00
$500.00 - $500.00
$500.00

by Parker Hannifin
Inverted Flared Fittings:Piloted Nut 41IFF for Single Flared Tubing

Package Quantity: 25 Units

Specifications for Variant SKU: 41IFF-8 Parker | 25 |
Series: 41IFF Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Fuel Grade, UL Listed
Product Features:
  • All brass construction
  • UL listed for flammable liquid and gas
  • Meets functional requirements of SAE J512
  • Steel nut for economy
Markets:
  • Air Conditioning
  • Marine
  • Mobile
  • Engines
Applications:
  • Refrigerant Lines
  • Brake Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Aluminum
  • Welded Steel Hydraulic Tubing
Part Number Tube Size Straight Thread Hex (C) L D
41IFF-2 1/8" 5/16"-28 5/16" .52" .133"
41IFF-3 3/16" 3/8"-24 3/8" .56" .196"
41IFF-4 1/4" 7/16"-24 7/16" .56" .259"
41IFF-5 5/16" 1/2"-20 1/2" .62" .321"
41IFF-6 3/8" 5/8"-18 5/8" .66" .384"
41IFF-8 1/2" 3/4"-28 3/4" .74" .508"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
