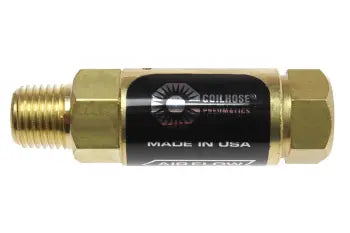

4214-90PS by Coilhose | Pre-Set In-Line Pressure Regulator 1/4" | 90 PSI | Brass

4214-90PS by Coilhose | Pre-Set In-Line Pressure Regulator 1/4" | 90 PSI | Brass

Save $5.03 Save $5.03
$45.25
$45.25 - $45.25
$45.25
$40.22
$40.22 - $40.22
$40.22
Coilhose Pneumatics - In-line Series - Pre-Set In-Line Pressure Regulators
Specifications for Variant SKU: 4214-90PS Coilhose
Material(s): Brass
Overview:
  • The In-Line Series Filters, Regulators and Lubricators are designed to increase air tool efficiency by providing filtration, regulation and lubrication at the tool. These economical units are particularly useful when it is difficult to maintain air quality over long distances or when a tool is used in multiple locations. All units have female inlet threads and male outlet threads. This series is particularly useful for air nailers, staplers and other small pneumatic tools.
  • The unique design of the In-Line Pressure Regulators provides a compact method or setting air pressure to pulse style tools such as a nailer or a stapler. By installing the preset units on a tool, it prevents tampering or unwanted adjustment of tools in a production setting.
  • The adjustable units are perfect for easily setting fastener depth in trim carpentry or even framing, rather than continual trips back to the job-site's compressor.
Features:
  • Setting will not change due to vibration.
  • Compact size is lightweight and is designed to be part of the tool.
  • Accurate factory setting eliminates need for gauge.
  • In port screen helps filter out harmful debris.
  • Note: Not recommended for high volume air tools.
  • For use with nailers, staplers, and other intermittent air tools.
Specifications:
  • Maximum Supply Pressure: 150 PSI
  • Operating Pressure Range: Preset
  • Maximum Operating Temp.: 175° F
  • Material: Brass
  • Accuracy: +/- 2.5 PSI at 125 PSI
  • Length: 2.88"
  • Diameter: 0.88"
  • Weight: 3 oz

Model Size PSI
4214-70PS 1/4" 70 PSI
4214-80PS 1/4" 80 PSI
4214-90PS 1/4" 90 PSI
4214-100PS 1/4" 100 PSI
