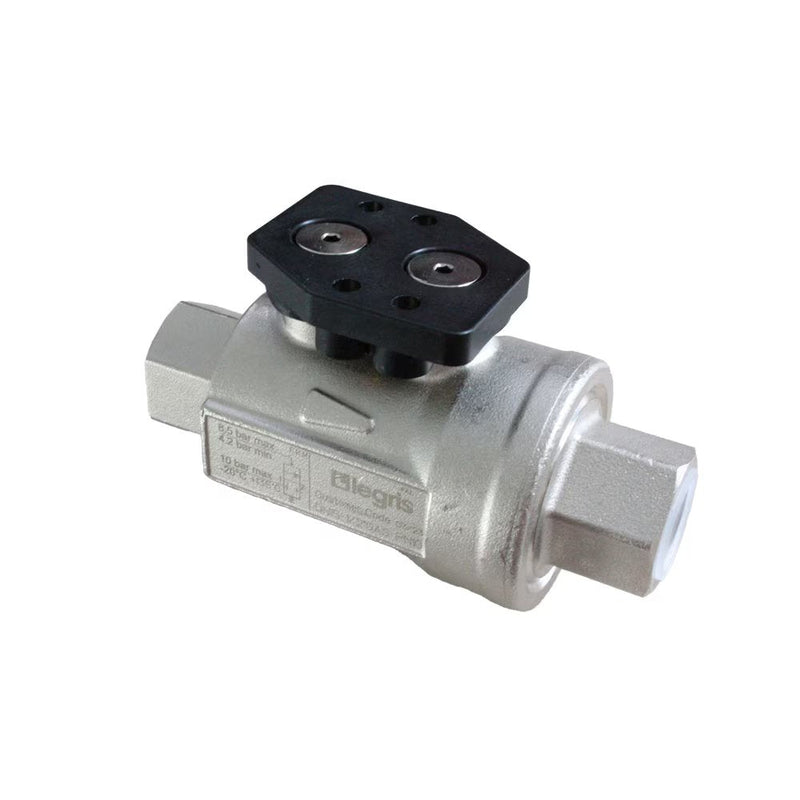

4222 20 27 20 by Parker | Double-Acting Axial Valve | G3/4" Female BSPP Thread w/ FKM Seal | 136 mm Length | Nickel-Plated Brass | Pack of 20

4222 20 27 20 by Parker | Double-Acting Axial Valve | G3/4" Female BSPP Thread w/ FKM Seal | 136mm Length | Nickel-Plated Brass

Save $244.85 Save $244.85
$612.13
$612.13 - $612.13
$612.13
$367.28
$367.28 - $367.28
$367.28

by Parker Hannifin
Axial Valves:4222 Double-Acting Axial Valve with FKM Seal, Female BSPP Thread Nickel-plated brass, FKM
Specifications for Variant SKU: 4222 20 27 20 Parker
Series: 4222 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): FKM
Special Properties: Valved
This valve is equipped with a pneumatic or electro-pneumatic actuator, so it can be integrated into simple automated systems.
Product Features:
  • Very compact
  • Simple to install: ready-to-use
  • Two seal materials (FKM, EPDM) for a wider chemical and temperature range
  • Pneumatic or electro-pneumatic
  • Three versions: normally closed, normally open and double-acting
Applications:
  • Injection Molding
  • Pneumatics
  • Packaging
  • Textile
  • Printing
  • Robotics
Compatible Fluids:
  • Compressed air, water, industrial fluids
  • Other fluids: please contact division.
Specification:
Temperature Range:
  • -4° to +275°F (-20° to +150°C) (suffix 20 FKM)
  • -4° to +275°F (-20° to +150°C) ((suffix 30 EPDM optional; please contact division)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Vacuum Service:
  • 29 in Hg
Pilot Pressure:
  • NC and NO: 61 to 116 PSI (4.2 to 8 bar)
  • Double-acting: 62 to 116 PSI (4.3 to 8 bar)
Part Number BSSP (C) F G H H1 L Kg.
4222 15 21 20 G1/2" 27 mm 52 mm 59 mm 33 mm 113 mm .80 Kg
4222 20 27 20 G3/4" 33 mm 63.5 mm 71 mm 39 mm 136 mm 1.40 Kg
4222 25 34 20 G1" 41 mm 69 mm 76 mm 41.5 mm 144 mm 1.60 Kg
4222 50 48 20* G2" 70 mm 109 mm 115 mm 60 mm 205 mm 4.80 Kg

Pilot port: G1/8

*Models with EC marking
