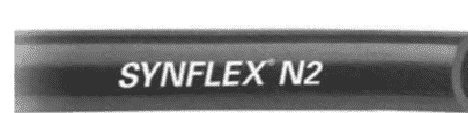

4225-86203 Synflex N2 Nylon Tubing 2 - 250 ft Reels - Natural

4225-86203 Aeroquip by Danfoss | -08 Synflex N2 Tubing 2 | Natural | Nylon | 250 ft Reels

$1,409.80 - $1,409.80
$1,409.80
$1,409.80 - $1,409.80
$1,409.80

4212/4225 Synflex N2 Nylon Tubing

Package Quantity: 500 FT

Specifications for Variant SKU: 4225-86203 Danfoss | 500 |
Brand: Aeroquip, Synflex N2
Series: 4225 Series
Hose Color(s): Black
Internal Diameter: 0.38in
Outer Diameter: 0.50in
Tubing Construction: Nylon

SPECIFICATIONS

Application:
  • Low-pressure hydraulic
  • Chemical transfer service
  • Pneumatic systems
 Features:
  • Premium quality flexible tubing
  • High dimensional stability
  • Low moisture absorption
  • Chemical resistant
  • UV and ozone resistant
  • Light weight
Tube: Heat and Light stabilizedNylon 11 or Nylon 12 resin Operating Parameters: Temperature Range-40°C to +93°C (-40°F to +200°F)
Part Number TubeSize Tube I.D. Tube O.D. WallThickness BurstPressure MinimumBendRadius Weight Lengths*
@23.9°C @75°F
Natural DN mm in mm in bar psi bar psi bar psi kg/m lbs/ft m ft
4225-23103 -02 3 1,6 0.06 3,2 0.13 0,8 0.03 138 2000 6,4 0.25 0,6 0.41 304,8 1000
4225-43503 -04 6 4,6 0.18 6,4 0.25 0,9 0.04 69 1000 22,0 0.89 1,6 1.06 228,6 750
4225-54003 -05 8 5,9 0.23 7,9 0.31 1,0 0.04 69 1000 28,0 1.13 2,3 1.54 228,6 750
4225-65003 -06 10 7,0 0.28 9,5 0.38 1,3 0.05 69 1000 28,0 1.13 3,4 2.30 228,6 750
4225-86203 -08 12 9,5 0.38 12,7 0.50 1,6 0.06 69 1000 32,0 1.25 5,7 3.84 152,4 500

*Available lengths consist of 76,2 m (250 ft) continuous reels. Example 4212-21603 consists of four 76,2 m (250 ft) reels equating to 1000 ft.

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Eaton and Eaton Aeroquip handbooks for the most accurate and up to date data and specifics. All liability of Eaton products warrantied and guaranteed by manufacturer.

Warning! Eaton hose and fittings are engineered to match Eaton Aeroquip hose and fitting tolerances. The use of Eaton fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Eaton Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
