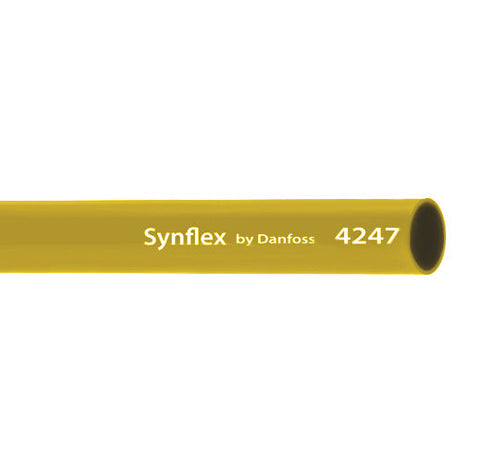

4247-0414-1000 Synflex Solstice by Danfoss | 4247 Eclipse | Type A Truck Air Brake Tubing | 0.25" Tube OD | 0.17" Tube ID | 0.04" Wall Thickness | Yellow | 1000 ft Length

4247-0414-1000 Synflex Solstice by Danfoss | 4247 Eclipse | Type A Truck Air Brake Tubing | 0.25" Tube OD | 0.17" Tube ID | 0.04" Wall Thickness | Yellow | 1000 ft Length

$550.00 - $550.00
$550.00
$550.00 - $550.00
$550.00

4247** Synflex Solstice®

Type A Truck Tubing Air Brake Tubing **Replacement for 4245 Synflex Eclipse Tubing

Package Quantity: 1000 FT

Specifications for Variant SKU: 4247-0414-1000 Danfoss | 1000 |
Brand: Aeroquip, Synflex Solstice
Series: 4247 Series
Hose Color(s): Yellow
Internal Diameter: 0.17in
Outer Diameter: 0.25in
Tubing Construction: Nylon
Applicable Specs & Approvals: D.O.T. FMVSS 106, SAE J1131, SAE J2494-3, SAE J844 Type A
Hose Properties:
Application: Truck air brake systems.
Trailer air brake systems.
Auxiliary air systems.
Formed tubes.
Formed and straight air brake harness assemblies.
Not for use with fuel.		 SAE Rating: Meets: SAE J844 Type A, SAE J1131, SAE J2494-3, DOT-FMVSS 106
Other Ratings: N/A Tube: 100% Polyamide
Reinforcement: Polyester Yarn Cover: N/A
Temperature Range: -65°F to +200°F
(-54°C to +93°C)
Features: Superior abrasion resistance.
Ease of cutting.
Enhanced flexibility and extension.
Flow performance.
UV stabilized, thermoformable.
Part
Number
(6000ft Non-Continuous)		 Part
Number
(100ft)		 Part
Number
(500ft)		 Part
Number
(1000ft)		 Tube
Size 		Tube
OD		 Tube
ID		 Wall
Thickness		 Min. Burst
Pressure		 Min. Bend
Radius		 Weight Color
mm in mm in mm in bar psi mm in lbs/100ft
4247-04106 4247-0410-0100 4247-0410-0500 4247-0410-1000 -04 6,4 mm 0.25" 4,3mm 0.17" 1,0mm 0.04" 83,0 bar 1,200 psi 25,4mm 1.00" 1.50 lbs/ft Black
4247-04116 - - - -04 - 0.25" - 0.17" - 0.04" - 1,200 psi - 1.00" 1.50 lbs/ft White
4247-04126 4247-0412-0100 4247-0412-0500 4247-0412-1000 -04 6,4 mm 0.25" 4,3mm 0.17" 1,0mm 0.04" 83,0 bar 1,200 psi 25,4mm 1.00" 1.50 lbs/ft Red
4247-04136 4247-0413-0100 4247-0413-0500 4247-0413-1000 -04 6,4 mm 0.25" 4,3mm 0.17" 1,0mm 0.04" 83,0 bar 1,200 psi 25,4mm 1.00" 1.50 lbs/ft Orange
4247-04146 4247-0414-0100 4247-0414-0500 4247-0414-1000 -04 6,4 mm 0.25" 4,3mm 0.17" 1,0mm 0.04" 83,0 bar 1,200 psi 25,4mm 1.00" 1.50 lbs/ft Yellow
4247-04156 4247-0415-0100 4247-0415-0500 4247-0415-1000 -04 6,4 mm 0.25" 4,3mm 0.17" 1,0mm 0.04" 83,0 bar 1,200 psi 25,4mm 1.00" 1.50 lbs/ft Green
4247-04166 4247-0416-0100 4247-0416-0500 4247-0416-1000 -04 6,4 mm 0.25" 4,3mm 0.17" 1,0mm 0.04" 83,0 bar 1,200 psi 25,4mm 1.00" 1.50 lbs/ft Blue
4247-041C6 4247-041C-0100 4247-041C-0500 4247-041C-1000 -04 6,4 mm 0.25" 4,3mm 0.17" 1,0mm 0.04" 83,0 bar 1,200 psi 25,4mm 1.00" 1.50 lbs/ft Brown
- 4247-041F-0100 4247-041F-0500 4247-041F-1000 -04 6,4 mm 0.25" 4,3mm 0.17" 1,0mm 0.04" 83,0 bar 1,200 psi 25,4mm 1.00" 1.50 lbs/ft Silver
4245-05204 4245-0520-0100 4245-0520-0500 4245-0520-1000 -05 8,0 mm 0.312" 5,9mm 0.23" 1,0mm 0.04" 69,0 bar 1,000 psi 28,6mm 1.13" 1.54 lbs/ft Black
4245-05224 - - - -05 8,0 mm 0.312" 5,9mm 0.23" 1,0mm 0.04" 69,0 bar 1,000 psi 28,6mm 1.13" 1.54 lbs/ft Red
4245-05254 - - - -05 8,0 mm 0.312" 5,9mm 0.23" 1,0mm 0.04" 69,0 bar 1,000 psi 28,6mm 1.13" 1.54 lbs/ft Green
4245-05264 - - - -05 8,0 mm 0.312" 5,9mm 0.23" 1,0mm 0.04" 69,0 bar 1,000 psi 28,6mm 1.13" 1.54 lbs/ft Blue

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
