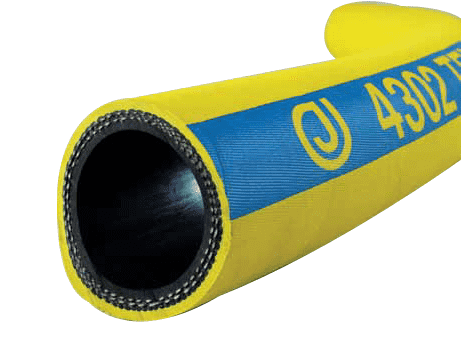

4302-0100-050 by Jason Industrial | 4302 Series | Textile Reinforced Air Hose | 400 PSI | 1" ID | 1.46" OD | Bright Yellow | Nitrile | 50ft

4302-0100-050 by Jason Industrial | 4302 Series | Textile Reinforced Air Hose | 400 PSI | 1" ID | 1.46" OD | Bright Yellow | Nitrile | 50ft

Save $1.55 Save $1.55
$168.88
$168.88 - $168.88
$168.88
$167.33
$167.33 - $167.33
$167.33

Jason Industrial Inc. Hose - Air Hose - 4302 Textile Reinforced Air Hose 400 PSI - Bright Yellow

Package Quantity: 50 FT

Specifications for Variant SKU: 4302-0100-050 Jason | 50 |
Series: 4302 Series
Hose Color(s): Yellow
Internal Diameter: 1in
Outer Diameter: 1.46in
Tubing Construction: Nitrile Blend
Cover Construction: SBR
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: For tough applications in mines and quarries. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile Blend, Smooth and Black
Reinforcement: Two-Ply Synthetic Fabric Cover: SBR, Fabric Impression, Yellow, Pin-Pricked.
Temperature Range: -25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4302 TEXTILE AIR WP (PSI)(BAR). Blue mylar longitudinal stripe.
Other Features:
  • Oil mist resistant tube
  • Bright yellow non-marking cover
  • Medium high working pressure
  • Weather and ozone resistant
  • Excellent abrasion resistance
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR lb./ft. KG/m in. mm ft
Uncoupled
4302-0050-050 1/2" 12.70mm 0.91" 23.11mm 2 400 PSI 27.58 BAR N/A 0.32 lb./ft. 0.48 KG/m 6.00" 152.40mm 50ft
4302-0075-050 3/4" 19.05mm 1.18" 29.97mm 2 400 PSI 27.58 BAR N/A 0.40 lb./ft. 0.60 KG/m 7.50" 190.00mm 50ft
4302-0100-050 1" 25.40mm 1.46" 37.08mm 2 400 PSI 27.58 BAR N/A 0.54 lb./ft. 0.80 KG/m 10.00" 254.00mm 50ft
4302-0150-050 1-1/2" 38.10mm 2.05" 52.07mm 2 400 PSI 27.58 BAR N/A 0.92 lb./ft. 1.37 KG/m 15.00" 280.00mm 50ft
4302-0200-050 2" 50.80mm 2.64" 67.06mm 2 400 PSI 27.58 BAR N/A 1.37 lb./ft. 2.04 KG/m 20.00" 508.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
