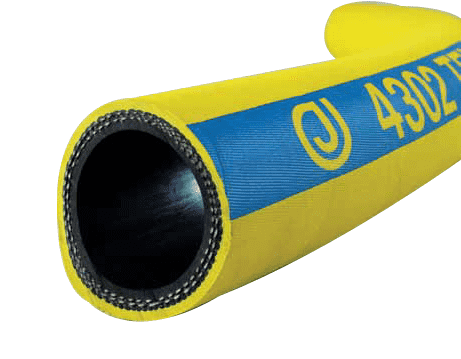

4302-0200-050 by Jason Industrial | 4302 Series | Textile Reinforced Air Hose | 400 PSI | 2" ID | 2.64" OD | Bright Yellow | Nitrile | 50ft

Save $39.80

$397.99

$397.99 - $397.99

$397.99

$358.19

$358.19 - $358.19

$358.19

Jason Industrial Inc. Hose - Air Hose - 4302 Textile Reinforced Air Hose 400 PSI - Bright Yellow

Package Quantity: 50 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 4302-0200-050 Jason \| 50 \|
Series:	4302 Series
Hose Color(s):	Yellow
Internal Diameter:	2in
Outer Diameter:	2.64in
Tubing Construction:	Nitrile Blend
Cover Construction:	SBR
Special Properties:	Pin Pricked Hose Cover

SPECIFICATIONS

Other Features:
Application:	For tough applications in mines and quarries.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Nitrile Blend, Smooth and Black
Reinforcement:	Two-Ply Synthetic Fabric	Cover:	SBR, Fabric Impression, Yellow, Pin-Pricked.
Temperature Range:	-25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4302 TEXTILE AIR WP (PSI)(BAR). Blue mylar longitudinal stripe.
Oil mist resistant tube Bright yellow non-marking cover Medium high working pressure Weather and ozone resistant Excellent abrasion resistance

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR		lb./ft.	KG/m	in.	mm	ft
Uncoupled
4302-0050-050	1/2"	12.70mm	0.91"	23.11mm	2	400 PSI	27.58 BAR	N/A	0.32 lb./ft.	0.48 KG/m	6.00"	152.40mm	50ft
4302-0075-050	3/4"	19.05mm	1.18"	29.97mm	2	400 PSI	27.58 BAR	N/A	0.40 lb./ft.	0.60 KG/m	7.50"	190.00mm	50ft
4302-0100-050	1"	25.40mm	1.46"	37.08mm	2	400 PSI	27.58 BAR	N/A	0.54 lb./ft.	0.80 KG/m	10.00"	254.00mm	50ft
4302-0150-050	1-1/2"	38.10mm	2.05"	52.07mm	2	400 PSI	27.58 BAR	N/A	0.92 lb./ft.	1.37 KG/m	15.00"	280.00mm	50ft
4302-0200-050	2"	50.80mm	2.64"	67.06mm	2	400 PSI	27.58 BAR	N/A	1.37 lb./ft.	2.04 KG/m	20.00"	508.00mm	50ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
