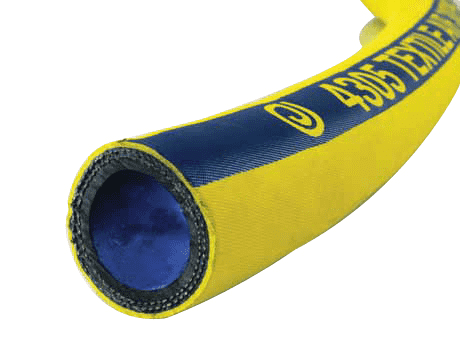

4305-0200-100 by Jason Industrial | 4305 Series | Textile Reinforced Air Hose | 300 PSI | 2" ID | 2.64" OD | Bright Yellow | Nitrile | 100ft

Save $277.92

$972.73

$972.73 - $972.73

$972.73

$694.81

$694.81 - $694.81

$694.81

Jason Industrial Inc. Hose - Air Hose - 4305 Textile Reinforced Air Hose 300 PSI - Bright Yellow

Package Quantity: 100 FT

Specifications for Variant SKU: 4305-0200-100 Jason \| 100 \|
Series:	4305 Series
Hose Color(s):	Yellow
Internal Diameter:	2in
Outer Diameter:	2.64in
Tubing Construction:	Nitrile Blend
Cover Construction:	Nitrile/SBR Blend
Special Properties:	Pin Pricked Hose Cover

SPECIFICATIONS

Other Features:
Application:	For rugged air line service in mining, quarries, construction, sandblasting, industrial air placement and equipment rental.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Nitrile Blend, Smooth and Black
Reinforcement:	Two-Ply Synthetic Fabric	Cover:	Nitrile/SBR, Fabric Impression, Yellow, Pin-Pricked.
Temperature Range:	-25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4305 TEXTILE AIR WP (PSI)(BAR). Blue mylar longitudinal stripe
Oil mist resistant tube Bright yellow non-marking cover Weather and ozone resistant Excellent abrasion resistance

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR		lb./ft.	KG/m	in.	mm	ft
Uncoupled
4305-0050-100	1/2"	12.70mm	0.91"	23.11mm	2	300 PSI	24.13 BAR	N/A	0.32 lb./ft.	0.48 KG/m	6.00"	152.40mm	100ft
4305-0075-100	3/4"	19.05mm	1.18"	29.97mm	2	300 PSI	24.13 BAR	N/A	0.40 lb./ft.	0.60 KG/m	7.50"	190.00mm	100ft
4305-0100-050	1"	25.40mm	1.46"	37.08mm	2	300 PSI	24.13 BAR	N/A	0.54 lb./ft.	0.80 KG/m	10.00"	254.00mm	50ft
4305-0100-100	1"	25.40mm	1.46"	37.08mm	2	300 PSI	24.13 BAR	N/A	0.54 lb./ft.	0.80 KG/m	10.00"	254.00mm	100ft
4305-0125-100	1-1/4"	31.75mm	1.81"	45.97mm	2	300 PSI	24.13 BAR	N/A	0.81 lb./ft.	1.21 KG/m	12.50"	320.00mm	100ft
4305-0150-100	1-1/2"	38.10mm	2.05"	52.07mm	2	300 PSI	24.13 BAR	N/A	0.92 lb./ft.	1.37 KG/m	15.00"	381.00mm	100ft
4305-0200-100	2"	50.80mm	2.64"	67.06mm	2	300 PSI	24.13 BAR	N/A	1.37 lb./ft.	2.04 KG/m	20.00"	508.00mm	100ft
4305-0250-100	2-1/2"	63.50mm	3.15"	80.01mm	2	300 PSI	24.13 BAR	N/A	1.69 lb./ft.	2.51 KG/m	25.00"	635.00mm	100ft
4305-0300-050	3"	76.20mm	3.70"	93.98mm	2	300 PSI	24.13 BAR	N/A	2.16 lb./ft.	3.21 KG/m	30.00"	762.00mm	50ft
4305-0300-100	3"	76.20mm	3.70"	93.98mm	2	300 PSI	24.13 BAR	N/A	2.16 lb./ft.	3.21 KG/m	30.00"	762.00mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
