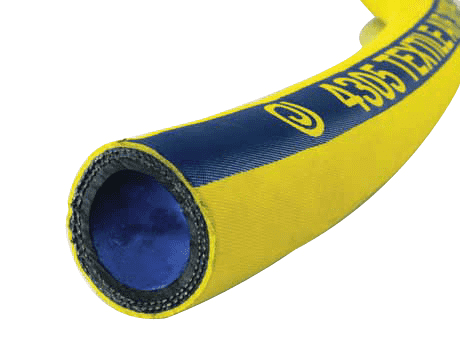

4305-0300-050 by Jason Industrial | 4305 Series | Textile Reinforced Air Hose | 300 PSI | 3" ID | 3.70" OD | Bright Yellow | Nitrile | 50ft

4305-0300-050 by Jason Industrial | 4305 Series | Textile Reinforced Air Hose | 300 PSI | 3" ID | 3.70" OD | Bright Yellow | Nitrile | 50ft

Save $235.11 Save $235.11
$822.89
$822.89 - $822.89
$822.89
$587.78
$587.78 - $587.78
$587.78

Jason Industrial Inc. Hose - Air Hose - 4305 Textile Reinforced Air Hose 300 PSI - Bright Yellow

Package Quantity: 50 FT

Specifications for Variant SKU: 4305-0300-050 Jason | 50 |
Series: 4305 Series
Hose Color(s): Yellow
Internal Diameter: 3in
Outer Diameter: 3.70in
Tubing Construction: Nitrile Blend
Cover Construction: Nitrile/SBR Blend
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: For rugged air line service in mining, quarries, construction, sandblasting, industrial air placement and equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile Blend, Smooth and Black
Reinforcement: Two-Ply Synthetic Fabric Cover: Nitrile/SBR, Fabric Impression, Yellow, Pin-Pricked.
Temperature Range: -25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4305 TEXTILE AIR WP (PSI)(BAR). Blue mylar longitudinal stripe
Other Features:
  • Oil mist resistant tube
  • Bright yellow non-marking cover
  • Weather and ozone resistant
  • Excellent abrasion resistance
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR lb./ft. KG/m in. mm ft
Uncoupled
4305-0050-100 1/2" 12.70mm 0.91" 23.11mm 2 300 PSI 24.13 BAR N/A 0.32 lb./ft. 0.48 KG/m 6.00" 152.40mm 100ft
4305-0075-100 3/4" 19.05mm 1.18" 29.97mm 2 300 PSI 24.13 BAR N/A 0.40 lb./ft. 0.60 KG/m 7.50" 190.00mm 100ft
4305-0100-050 1" 25.40mm 1.46" 37.08mm 2 300 PSI 24.13 BAR N/A 0.54 lb./ft. 0.80 KG/m 10.00" 254.00mm 50ft
4305-0100-100 1" 25.40mm 1.46" 37.08mm 2 300 PSI 24.13 BAR N/A 0.54 lb./ft. 0.80 KG/m 10.00" 254.00mm 100ft
4305-0125-100 1-1/4" 31.75mm 1.81" 45.97mm 2 300 PSI 24.13 BAR N/A 0.81 lb./ft. 1.21 KG/m 12.50" 320.00mm 100ft
4305-0150-100 1-1/2" 38.10mm 2.05" 52.07mm 2 300 PSI 24.13 BAR N/A 0.92 lb./ft. 1.37 KG/m 15.00" 381.00mm 100ft
4305-0200-100 2" 50.80mm 2.64" 67.06mm 2 300 PSI 24.13 BAR N/A 1.37 lb./ft. 2.04 KG/m 20.00" 508.00mm 100ft
4305-0250-100 2-1/2" 63.50mm 3.15" 80.01mm 2 300 PSI 24.13 BAR N/A 1.69 lb./ft. 2.51 KG/m 25.00" 635.00mm 100ft
4305-0300-050 3" 76.20mm 3.70" 93.98mm 2 300 PSI 24.13 BAR N/A 2.16 lb./ft. 3.21 KG/m 30.00" 762.00mm 50ft
4305-0300-100 3" 76.20mm 3.70" 93.98mm 2 300 PSI 24.13 BAR N/A 2.16 lb./ft. 3.21 KG/m 30.00" 762.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
