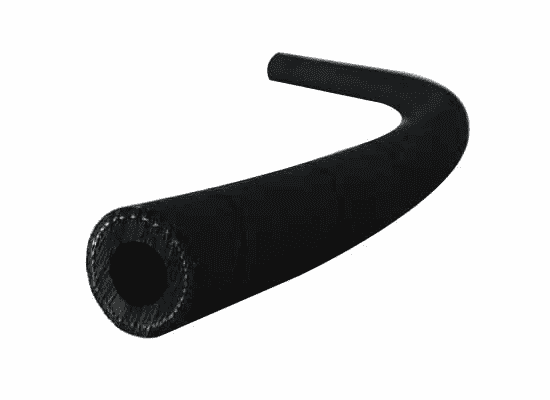

4312-0075-050 by Jason Industrial | 4312 Series | 2-Ply Sandblast Hose | 150 PSI | 3/4" ID | 1.50" OD | Black | NR/BR | 50ft

Save $2.30

$273.63

$273.63 - $273.63

$273.63

$271.33

$271.33 - $271.33

$271.33

Jason Industrial Inc. Hose - Material Handling Hose - 4312 2-Ply Sandblast Hose - Black

Package Quantity: 50 FT

Quantity

Specifications for Variant SKU: 4312-0075-050 Jason \| 50 \|
Series:	4312 Series
Hose Color(s):	Black
Internal Diameter:	0.75in
Outer Diameter:	1.50in
Tubing Construction:	Natural Rubber/SBR Blend
Cover Construction:	Natural Rubber/SBR Blend
Special Properties:	Conductive Tube, Pin Pricked Hose Cover, Static Dissipating Tube

SPECIFICATIONS

Other Features:
Application:	For conveyance of highly abrasive materials in sandblasting/cleaning and general maintenance in construction, shipyards, power plants and equipment rental	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	SBR/NR Blend, 1/4" Thick, Black, Static Dissipating
Reinforcement:	Two-ply Synthetic Fabric	Cover:	SBR/NR Blend, Pin-pricked
Temperature Range:	-25 deg. F (-32 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	N/A
Tube compounds are static-dissipating Highly abrasion resistant tube that will handle any blast grit Cover is abrasion and weather resistant

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4312-0050-050	1/2"	12.70mm	1.00"	25.40mm	2	150 PSI	10.35 BAR	N/A	0.31 lb./ft.	0.46 KG/m	5.00"	127.00mm	50ft
4312-0051-050	1/2"	12.70mm	1.06"	26.99mm	2	150 PSI	10.35 BAR	N/A	0.33 lb./ft.	0.49 KG/m	5.00"	127.00mm	50ft
4312-0051-100	1/2"	12.70mm	1.06"	26.99mm	2	150 PSI	10.35 BAR	N/A	0.33 lb./ft.	0.49 KG/m	5.00"	127.00mm	100ft
4312-0052-050	1/2"	12.70mm	1.13"	28.58mm	2	150 PSI	10.35 BAR	N/A	0.38 lb./ft.	0.57 KG/m	5.00"	127.00mm	50ft
4312-0075-050	3/4"	19.05mm	1.50"	38.10mm	2	150 PSI	10.35 BAR	N/A	0.60 lb./ft.	0.89 KG/m	7.50"	190.00mm	50ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
