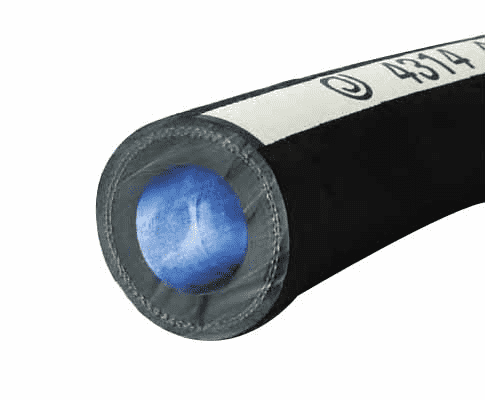

4314-0075-100 by Jason Industrial | 4314 Series | 4-Ply Sandblast Hose | 150 PSI | 3/4" ID | 1.50" OD | Black | NR/BR | 100ft

4314-0075-100 by Jason Industrial | 4314 Series | 4-Ply Sandblast Hose | 150 PSI | 3/4" ID | 1.50" OD | Black | NR/BR | 100ft

Save $4.73 Save $4.73
$518.06
$518.06 - $518.06
$518.06
$513.33
$513.33 - $513.33
$513.33

Jason Industrial Inc. Hose - Material Handling Hose - 4314 4-Ply Sandblast Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 4314-0075-100 Jason | 100 |
Series: 4314 Series
Hose Color(s): Black
Internal Diameter: 0.75in
Outer Diameter: 1.50in
Tubing Construction: Natural Rubber/SBR Blend
Cover Construction: Natural Rubber/SBR Blend
Special Properties: Conductive Tube, Static Dissipating Tube

SPECIFICATIONS

Application: For sandblasting/cleaning operations in construction, shipyards, steel mills and refineries SAE Rating: N/A
Other Ratings: N/A Tube: SBR/NR Blend, 1/4" Thick, Black, Static Dissipating
Reinforcement: Four-ply Synthetic Fabric Cover: SBR/NR Blend, Black
Temperature Range: -25 deg. F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4314 4-PLY SANDBLAST WP 150 PSI 10.35 BAR. White mylar longitudinal stripe
Other Features:
  • Tube compounds are static-dissipating
  • Highly abrasion resistant tube that will handle any blast grit
  • Cover is abrasion and weather resistant
  • Highly abrasion resistant tube handles manufactured coal slag, aluminum oxide or grit
  • Each O.D. is held to strict tolerances (ARPM) for ideal coupling compatibility
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4314-0075-050 3/4" 19.05mm 1.50" 38.10mm 4 150 PSI 10.35 BAR N/A 0.66 lb./ft. 0.98 KG/m 7.50" 190.00mm 50ft
4314-0075-100 3/4" 19.05mm 1.50" 38.10mm 4 150 PSI 10.35 BAR N/A 0.66 lb./ft. 0.98 KG/m 7.50" 190.00mm 100ft
4314-0075-200 3/4" 19.05mm 1.50" 38.10mm 4 150 PSI 10.35 BAR N/A 0.66 lb./ft. 0.98 KG/m 7.50" 190.00mm 200ft
4314-0100-050 1" 25.40mm 1.88" 47.63mm 4 150 PSI 10.35 BAR N/A 0.80 lb./ft. 1.19 KG/m 10.00" 254.00mm 50ft
4314-0100-100 1" 25.40mm 1.88" 47.63mm 4 150 PSI 10.35 BAR N/A 0.80 lb./ft. 1.19 KG/m 10.00" 254.00mm 100ft
4314-0100-200 1" 25.40mm 1.88" 47.63mm 4 150 PSI 10.35 BAR N/A 0.80 lb./ft. 1.19 KG/m 10.00" 254.00mm 200ft
4314-0125-050 1-1/4" 31.75mm 2.16" 53.18mm 4 150 PSI 10.35 BAR N/A 1.04 lb./ft. 1.55 KG/m 12.60" 320.00mm 50ft
4314-0125-100 1-1/4" 31.75mm 2.16" 53.18mm 4 150 PSI 10.35 BAR N/A 1.04 lb./ft. 1.55 KG/m 12.60" 320.00mm 100ft
4314-0125-200 1-1/4" 31.75mm 2.16" 53.18mm 4 150 PSI 10.35 BAR N/A 1.04 lb./ft. 1.55 KG/m 12.60" 320.00mm 200ft
4314-0150-050 1-1/2" 38.10mm 2.38" 60.33mm 4 150 PSI 10.35 BAR N/A 1.25 lb./ft. 1.86 KG/m 15.00" 380.00mm 50ft
4314-0150-100 1-1/2" 38.10mm 2.38" 60.33mm 4 150 PSI 10.35 BAR N/A 1.25 lb./ft. 1.86 KG/m 15.00" 380.00mm 100ft
4314-0150-200 1-1/2" 38.10mm 2.38" 60.33mm 4 150 PSI 10.35 BAR N/A 1.25 lb./ft. 1.86 KG/m 15.00" 380.00mm 200ft
4314-0200-050 2" 50.80mm 2.88" 73.03mm 4 150 PSI 10.35 BAR N/A 1.45 lb./ft. 2.16 KG/m 20.00" 508.00mm 100ft
4314-0200-100 2" 50.80mm 2.88" 73.03mm 4 150 PSI 10.35 BAR N/A 1.45 lb./ft. 2.16 KG/m 20.00" 508.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
