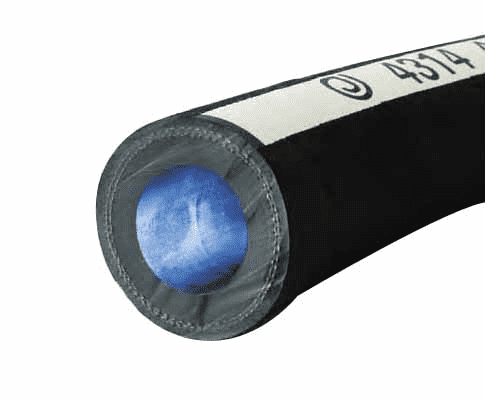

4314-0100-050 by Jason Industrial | 4314 Series | 4-Ply Sandblast Hose | 150 PSI | 1" ID | 1.88" OD | Black | NR/BR | 50ft

4314-0100-050 by Jason Industrial | 4314 Series | 4-Ply Sandblast Hose | 150 PSI | 1" ID | 1.88" OD | Black | NR/BR | 50ft

Save $3.06 Save $3.06
$290.39
$290.39 - $290.39
$290.39
$287.33
$287.33 - $287.33
$287.33

Jason Industrial Inc. Hose - Material Handling Hose - 4314 4-Ply Sandblast Hose - Black

Package Quantity: 50 FT

Specifications for Variant SKU: 4314-0100-050 Jason | 50 |
Series: 4314 Series
Hose Color(s): Black
Internal Diameter: 1in
Outer Diameter: 1.88in
Tubing Construction: Natural Rubber/SBR Blend
Cover Construction: Natural Rubber/SBR Blend
Special Properties: Conductive Tube, Static Dissipating Tube

SPECIFICATIONS

Application: For sandblasting/cleaning operations in construction, shipyards, steel mills and refineries SAE Rating: N/A
Other Ratings: N/A Tube: SBR/NR Blend, 1/4" Thick, Black, Static Dissipating
Reinforcement: Four-ply Synthetic Fabric Cover: SBR/NR Blend, Black
Temperature Range: -25 deg. F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4314 4-PLY SANDBLAST WP 150 PSI 10.35 BAR. White mylar longitudinal stripe
Other Features:
  • Tube compounds are static-dissipating
  • Highly abrasion resistant tube that will handle any blast grit
  • Cover is abrasion and weather resistant
  • Highly abrasion resistant tube handles manufactured coal slag, aluminum oxide or grit
  • Each O.D. is held to strict tolerances (ARPM) for ideal coupling compatibility
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4314-0075-050 3/4" 19.05mm 1.50" 38.10mm 4 150 PSI 10.35 BAR N/A 0.66 lb./ft. 0.98 KG/m 7.50" 190.00mm 50ft
4314-0075-100 3/4" 19.05mm 1.50" 38.10mm 4 150 PSI 10.35 BAR N/A 0.66 lb./ft. 0.98 KG/m 7.50" 190.00mm 100ft
4314-0075-200 3/4" 19.05mm 1.50" 38.10mm 4 150 PSI 10.35 BAR N/A 0.66 lb./ft. 0.98 KG/m 7.50" 190.00mm 200ft
4314-0100-050 1" 25.40mm 1.88" 47.63mm 4 150 PSI 10.35 BAR N/A 0.80 lb./ft. 1.19 KG/m 10.00" 254.00mm 50ft
4314-0100-100 1" 25.40mm 1.88" 47.63mm 4 150 PSI 10.35 BAR N/A 0.80 lb./ft. 1.19 KG/m 10.00" 254.00mm 100ft
4314-0100-200 1" 25.40mm 1.88" 47.63mm 4 150 PSI 10.35 BAR N/A 0.80 lb./ft. 1.19 KG/m 10.00" 254.00mm 200ft
4314-0125-050 1-1/4" 31.75mm 2.16" 53.18mm 4 150 PSI 10.35 BAR N/A 1.04 lb./ft. 1.55 KG/m 12.60" 320.00mm 50ft
4314-0125-100 1-1/4" 31.75mm 2.16" 53.18mm 4 150 PSI 10.35 BAR N/A 1.04 lb./ft. 1.55 KG/m 12.60" 320.00mm 100ft
4314-0125-200 1-1/4" 31.75mm 2.16" 53.18mm 4 150 PSI 10.35 BAR N/A 1.04 lb./ft. 1.55 KG/m 12.60" 320.00mm 200ft
4314-0150-050 1-1/2" 38.10mm 2.38" 60.33mm 4 150 PSI 10.35 BAR N/A 1.25 lb./ft. 1.86 KG/m 15.00" 380.00mm 50ft
4314-0150-100 1-1/2" 38.10mm 2.38" 60.33mm 4 150 PSI 10.35 BAR N/A 1.25 lb./ft. 1.86 KG/m 15.00" 380.00mm 100ft
4314-0150-200 1-1/2" 38.10mm 2.38" 60.33mm 4 150 PSI 10.35 BAR N/A 1.25 lb./ft. 1.86 KG/m 15.00" 380.00mm 200ft
4314-0200-050 2" 50.80mm 2.88" 73.03mm 4 150 PSI 10.35 BAR N/A 1.45 lb./ft. 2.16 KG/m 20.00" 508.00mm 100ft
4314-0200-100 2" 50.80mm 2.88" 73.03mm 4 150 PSI 10.35 BAR N/A 1.45 lb./ft. 2.16 KG/m 20.00" 508.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
