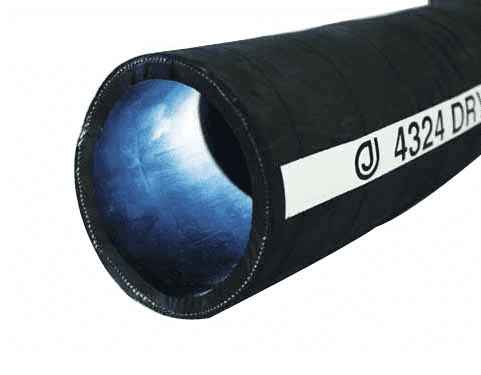

4322-0500-100 Jason Industrial 4322 1/8" Tube Thickness Sand & Dry Cement, Powder Discharge Hose - Black - 75 PSI - 5" ID - 5.46" OD - 100ft

4322-0500-100 by Jason Industrial | 4322 Series | 1/8" Tube Thickness Sand & Dry Cement, Powder Discharge Hose | 75 PSI | 5" ID | 5.46" OD | Black | NR/BR | 100ft

Save $17.77 Save $17.77
$1,796.44
$1,796.44 - $1,796.44
$1,796.44
$1,778.67
$1,778.67 - $1,778.67
$1,778.67

Jason Industrial Inc. Hose - Material Handling Hose - Sand & Dry Cement, Powder Discharge Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 4322-0500-100 Jason | 100 |
Series: 4322 Series
Hose Color(s): Black
Internal Diameter: 5in
Outer Diameter: 5.46in
Tubing Construction: Natural Rubber/SBR Blend
Special Properties: Conductive Tube, Static Dissipating Tube

SPECIFICATIONS

Application: For pneumatic discharge of dry powders, dry cement or other dry materials. Also used for sand/water mix applications on fracking sites SAE Rating: N/A
Other Ratings: N/A Tube: NR/SBR Blend, Black and Static-dissipating
Reinforcement: Two-ply Synthetic Fabric Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4322, 4323 or 4324 DRY BULK DISCHARGE ID Tube WP 75 PSI 5.17 BAR. White mylar longitudinal stripe.
Other Features:
  • Special static dissipating tube compound
  • Weather and ozone resistant
  • High abrasion resistant tube resists cutting/gouging
  • Can be rolled for transport and storage
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
1/8" Tube Thickness
4322-0400-100 4" 101.60mm 4.48" 113.79mm 2 75 PSI 5.17 BAR N/A 1.60 lb./ft. 2.38 KG/m 40.00" 1016.00mm 100ft
4322-0500-100 5" 127.00mm 5.46" 138.68mm 2 75 PSI 5.17 BAR N/A 1.88 lb./ft. 2.80 KG/m 50.00" 1270.00mm 100ft
3/16" Tube Thickness
4323-0400-100 4" 101.60mm 4.68" 118.87mm 2 75 PSI 5.17 BAR N/A 2.42 lb./ft. 3.60 KG/m 40.00" 1016.00mm 100ft
4323-0500-100 5" 127.00mm 5.68" 144.27mm 2 75 PSI 5.17 BAR N/A 2.92 lb./ft. 4.35 KG/m 50.00" 1270.00mm 100ft
1/4" Tube Thickness
4324-0400-100 4" 101.60mm 4.84" 122.94mm 2 75 PSI 5.17 BAR N/A 3.23 lb./ft. 4.81 KG/m 40.00" 1016.00mm 100ft
4324-0500-100 5" 127.00mm 5.84" 148.34mm 2 75 PSI 5.17 BAR N/A 3.80 lb./ft. 5.65 KG/m 50.00" 1270.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
