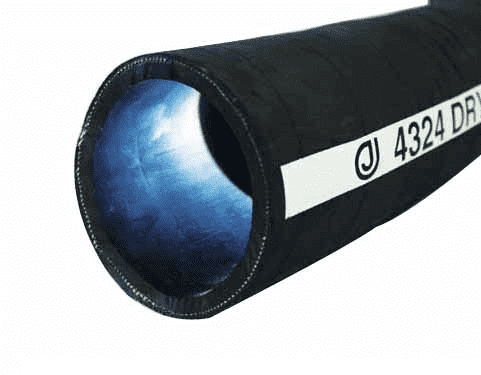

4324-0500-100 Jason Industrial 4324 1/4" Tube Thickness Sand & Dry Cement, Powder Discharge Hose - Black - 75 PSI - 5" ID - 5.84" OD - 100ft

4324-0500-100 by Jason Industrial | 4324 Series | 1/4" Tube Thickness Sand & Dry Cement, Powder Discharge Hose | 75 PSI | 5" ID | 5.84" OD | Black | NR/BR | 100ft

Save $916.74

$3,208.59

$3,208.59 - $3,208.59

$3,208.59

$2,291.85

$2,291.85 - $2,291.85

$2,291.85

Jason Industrial Inc. Hose - Material Handling Hose - Sand & Dry Cement, Powder Discharge Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 4324-0500-100 Jason \| 100 \|
Series:	4324 Series
Hose Color(s):	Black
Internal Diameter:	5in
Outer Diameter:	5.84in
Tubing Construction:	Natural Rubber/SBR Blend
Special Properties:	Conductive Tube, Static Dissipating Tube

SPECIFICATIONS

Other Features:
Application:	For pneumatic discharge of dry powders, dry cement or other dry materials. Also used for sand/water mix applications on fracking sites	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	NR/SBR Blend, Black and Static-dissipating
Reinforcement:	Two-ply Synthetic Fabric	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4322, 4323 or 4324 DRY BULK DISCHARGE ID Tube WP 75 PSI 5.17 BAR. White mylar longitudinal stripe.
Special static dissipating tube compound Weather and ozone resistant High abrasion resistant tube resists cutting/gouging Can be rolled for transport and storage

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
1/8" Tube Thickness
4322-0400-100	4"	101.60mm	4.48"	113.79mm	2	75 PSI	5.17 BAR	N/A	1.60 lb./ft.	2.38 KG/m	40.00"	1016.00mm	100ft
4322-0500-100	5"	127.00mm	5.46"	138.68mm	2	75 PSI	5.17 BAR	N/A	1.88 lb./ft.	2.80 KG/m	50.00"	1270.00mm	100ft
3/16" Tube Thickness
4323-0400-100	4"	101.60mm	4.68"	118.87mm	2	75 PSI	5.17 BAR	N/A	2.42 lb./ft.	3.60 KG/m	40.00"	1016.00mm	100ft
4323-0500-100	5"	127.00mm	5.68"	144.27mm	2	75 PSI	5.17 BAR	N/A	2.92 lb./ft.	4.35 KG/m	50.00"	1270.00mm	100ft
1/4" Tube Thickness
4324-0400-100	4"	101.60mm	4.84"	122.94mm	2	75 PSI	5.17 BAR	N/A	3.23 lb./ft.	4.81 KG/m	40.00"	1016.00mm	100ft
4324-0500-100	5"	127.00mm	5.84"	148.34mm	2	75 PSI	5.17 BAR	N/A	3.80 lb./ft.	5.65 KG/m	50.00"	1270.00mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
