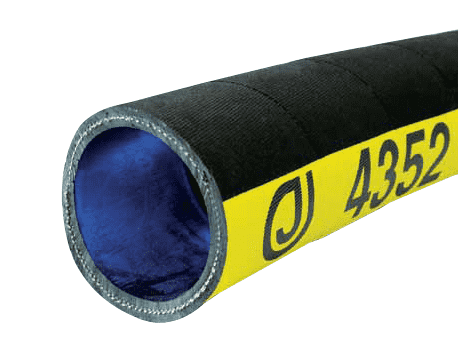

4352-0600-100 by Jason Industrial | 4352 Series | Rubber 2-Ply Water Discharge Hose | 150 PSI | 6" ID | 6.50" OD | Black | SBR | 100ft

4352-0600-100 by Jason Industrial | 4352 Series | Rubber 2-Ply Water Discharge Hose | 150 PSI | 6" ID | 6.50" OD | Black | SBR | 100ft

Save $593.48 Save $593.48
$2,077.18
$2,077.18 - $2,077.18
$2,077.18
$1,483.70
$1,483.70 - $1,483.70
$1,483.70

Jason Industrial Inc. Hose - Water Hose - 4352 Rubber 2-Ply Water Discharge Hose

Package Quantity: 100 FT

Specifications for Variant SKU: 4352-0600-100 Jason | 100 |
Series: 4352 Series
Hose Color(s): Black
Internal Diameter: 6in
Outer Diameter: 6.50in
Tubing Construction: SBR
Cover Construction: SBR

SPECIFICATIONS

Application: For general construction, mines and water discharge and equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: SBR, Black
Reinforcement: Two-ply Synthetic Fabric Cover: SBR, Black
Temperature Range: -25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4352 I.D. WATER DISCHARGE WP PSI BAR. Yellow mylar longitudinal stripe
Other Features:
  • Cover compound makes it resistant to weather and ozone
  • Lays flat and rolls up for easy storage
  • Ideal for standard working pressure
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4352-0150-100 1-1/2" 38.10mm 1.81" 45.97mm 2 150 PSI 10.35 BAR N/A 0.60 lb./ft. 0.89 KG/m 15.00" 380.00mm 100ft
4352-0200-100 2" 50.80mm 2.31" 58.67mm 2 150 PSI 10.35 BAR N/A 0.84 lb./ft. 1.25 KG/m 20.00" 508.00mm 100ft
4352-0250-100 2-1/2" 36.50mm 2.75" 69.85mm 2 150 PSI 10.35 BAR N/A 0.91 lb./ft. 1.35 KG/m 25.00" 635.00mm 100ft
4352-0300-100 3" 76.20mm 3.38" 85.85mm 2 150 PSI 10.35 BAR N/A 1.12 lb./ft. 1.67 KG/m 30.00" 762.00mm 100ft
4352-0400-100 4" 101.60mm 4.37" 111.00mm 2 150 PSI 10.35 BAR N/A 1.25 lb./ft. 1.86 KG/m 40.00" 1016.00mm 100ft
4352-0500-100 5" 127.00mm 5.51" 139.95mm 2 150 PSI 10.35 BAR N/A 2.29 lb./ft. 3.41 KG/m 50.00" 1270.00mm 100ft
4352-0600-050 6" 152.40mm 6.50" 165.10mm 2 150 PSI 10.35 BAR N/A 3.45 lb./ft. 5.13 KG/m 60.00" 1524.00mm 50ft
4352-0600-100 6" 152.40mm 6.50" 165.10mm 2 150 PSI 10.35 BAR N/A 3.45 lb./ft. 5.13 KG/m 60.00" 1524.00mm 100ft
4352-0800-050 8" 203.20mm 8.50" 215.90mm 2 100 PSI 6.89 BAR N/A 4.30 lb./ft. 6.40 KG/m 80.00" 2030.00mm 50ft
4352-0800-100 8" 203.20mm 8.50" 215.90mm 2 100 PSI 6.89 BAR N/A 4.30 lb./ft. 6.40 KG/m 80.00" 2030.00mm 100ft
4352-1000-050 10" 254.00mm 10.50" 266.70mm 2 100 PSI 6.89 BAR N/A 5.40 lb./ft. 8.04 KG/m 100.00" 2450.00mm 50ft
4352-1200-050 12" 304.80mm 12.50" 317.50mm 2 100 PSI 6.89 BAR N/A 6.75 lb./ft. 10.04 KG/m 120.00" 3058.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
