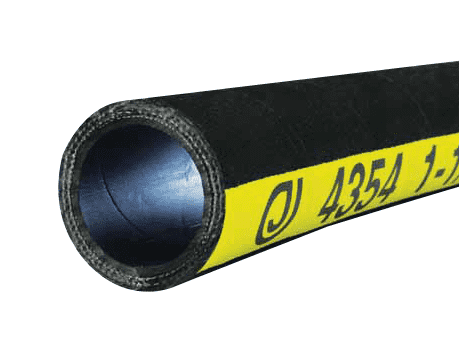

4354-0800-050 by Jason Industrial | 4354 Series | Rubber 4-Ply Water Discharge Hose | 125 PSI | 8" ID | 8.66" OD | Black | SBR | 50ft

4354-0800-050 by Jason Industrial | 4354 Series | Rubber 4-Ply Water Discharge Hose | 125 PSI | 8" ID | 8.66" OD | Black | SBR | 50ft

Save $650.52 Save $650.52
$2,276.81
$2,276.81 - $2,276.81
$2,276.81
$1,626.29
$1,626.29 - $1,626.29
$1,626.29

Jason Industrial Inc. Hose - Water Hose - 4354 Rubber 4-Ply Water Discharge Hose

Package Quantity: 50 FT

Specifications for Variant SKU: 4354-0800-050 Jason | 50 |
Series: 4354 Series
Hose Color(s): Black
Internal Diameter: 8in
Outer Diameter: 8.66in
Tubing Construction: SBR
Cover Construction: SBR

SPECIFICATIONS

Application: For water discharge in construction, mines & quarries. Also for heavy duty equipment rental. SAE Rating: N/A
Other Ratings: N/A Tube: SBR, Black
Reinforcement: Four-ply Synthetic Fabric Cover: SBR, Black
Temperature Range: -25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4354 I.D. WATER DISCHARGE WP PSI BAR. Yellow mylar longitudinal stripe
Other Features:
  • Cover compound makes it resistant to weather and ozone
  • Lays flat and rolls up for easy storage
  • Ideal for high working pressure water discharge applications
  • Excellent for tough, rugged operating conditions
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4354-0150-100 1-1/2" 38.10mm 2.00" 50.80mm 4 250 PSI 17.24 BAR N/A 0.83 lb./ft. 1.24 KG/m 15.00" 380.00mm 100ft
4354-0200-100 2" 50.80mm 2.56" 65.02mm 4 250 PSI 17.24 BAR N/A 1.11 lb./ft. 1.65 KG/m 20.00" 508.00mm 100ft
4354-0250-100 2-1/2" 36.50mm 3.07" 77.98mm 4 250 PSI 17.24 BAR N/A 1.24 lb./ft. 1.85 KG/m 25.00" 635.00mm 100ft
4354-0300-100 3" 76.20mm 3.58" 90.93mm 4 225 PSI 15.51 BAR N/A 1.50 lb./ft. 2.23 KG/m 30.00" 762.00mm 100ft
4354-0400-050 4" 101.60mm 4.61" 117.09mm 4 200 PSI 13.79 BAR N/A 1.85 lb./ft. 2.75 KG/m 40.00" 1016.00mm 50ft
4354-0400-100 4" 101.60mm 4.61" 117.09mm 4 200 PSI 13.79 BAR N/A 1.85 lb./ft. 2.75 KG/m 40.00" 1016.00mm 100ft
4354-0600-100 6" 152.40mm 6.57" 166.88mm 4 150 PSI 10.35 BAR N/A 3.90 lb./ft. 5.80 KG/m 60.00" 1524.00mm 100ft
4354-0800-050 8" 203.20mm 8.66" 219.96mm 4 125 PSI 8.62 BAR N/A 5.25 lb./ft. 7.81 KG/m 80.00" 2030.00mm 50ft
4354-1000-050 10" 254.00mm 10.66" 270.76mm 4 125 PSI 8.62 BAR N/A 6.29 lb./ft. 9.36 KG/m 100.00" 2540.00mm 50ft
4354-1200-050 12" 304.80mm 12.68" 322.07mm 4 125 PSI 8.62 BAR N/A 7.09 lb./ft. 10.54 KG/m 120.00" 3048.00mm 50ft
4354-1400-050 14" 355.60mm 14.61" 371.00mm 4 100 PSI 6.89 BAR N/A 7.62 lb./ft. 11.32 KG/m 120.00" 3048.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
