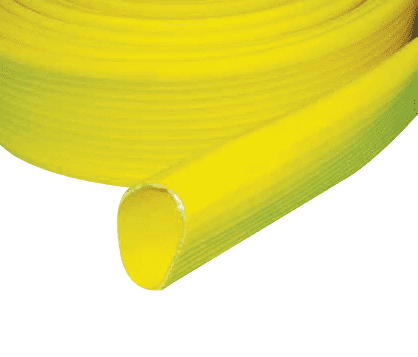

4358-0400-050 by Jason Industrial | 4358 Series | Oil Resistant Discharge Hose | 200 PSI | 4" ID | 0.110" Wall Thickness | Yellow | Nitrile/PVC | 50ft

Save $3.66

$387.66

$387.66 - $387.66

$387.66

$384.00

$384.00 - $384.00

$384.00

Jason Industrial Inc. Hose - Water Hose - 4358 Nitrile/PVC Oil Resistant Discharge Hose - Yellow

Package Quantity: 50 FT

Quantity

Specifications for Variant SKU: 4358-0400-050 Jason \| 50 \|
Series:	4358 Series
Hose Color(s):	Yellow
Internal Diameter:	4in
Tubing Construction:	Nitrile/PVC Blend
Cover Construction:	Nitrile/PVC Blend

SPECIFICATIONS

Other Features:
Application:	For use in industrial washdown, irrigation, general dewatering, pump discharge and drainage.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Yellow, NBR/PVC
Reinforcement:	N/A	Cover:	Yellow, NBR/PVC
Temperature Range:	-20 deg F (-29 deg. C) to +210 deg. F (+99 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	N/A
Up to 250 PSI (17.24 BAR) working pressure Oil resistant tube and cover Resists heat, cold, ozone and UV light Lightweight and flexible

Part Number	I.D.		Wall Thickness		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	ft
Uncoupled
4358-0075-050	3/4"	19.05mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.10 lb./ft.	0.15 KG/m	50ft
4358-0075-100	3/4"	19.05mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.10 lb./ft.	0.15 KG/m	100ft
4358-0100-050	1"	25.40mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.14 lb./ft.	0.21 KG/m	50ft
4358-0100-100	1"	25.40mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.14 lb./ft.	0.21 KG/m	100ft
4358-0150-050	1-1/2"	38.10mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.26 lb./ft.	0.39 KG/m	50ft
4358-0150-100	1-1/2"	38.10mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.26 lb./ft.	0.39 KG/m	100ft
4358-0200-050	2"	50.80mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.34 lb./ft.	0.51 KG/m	50ft
4358-0200-100	2"	50.80mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.34 lb./ft.	0.51 KG/m	100ft
4358-0250-050	2-1/2"	63.50mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.47 lb./ft.	0.70 KG/m	50ft
4358-0250-100	2-1/2"	63.50mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.47 lb./ft.	0.70 KG/m	100ft
4358-0300-050	3"	76.20mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.65 lb./ft.	0.97 KG/m	50ft
4358-0300-100	3"	76.20mm	0.110"	2.79mm	N/A	250 PSI	17.25 BAR	N/A	0.65 lb./ft.	0.97 KG/m	100ft
4358-0400-050	4"	102.40mm	0.110"	2.79mm	N/A	200 PSI	13.79 BAR	N/A	0.83 lb./ft.	1.24 KG/m	50ft
4358-0400-100	4"	102.40mm	0.110"	2.79mm	N/A	200 PSI	13.79 BAR	N/A	0.83 lb./ft.	1.24 KG/m	100ft
4358-0600-050	6"	152.40mm	0.110"	2.79mm	N/A	150 PSI	10.35 BAR	N/A	1.60 lb./ft.	2.39 KG/m	50ft
4358-0600-100	6"	152.40mm	0.110"	2.79mm	N/A	150 PSI	10.35 BAR	N/A	1.60 lb./ft.	2.39 KG/m	100ft
4358-0800-050	8"	204.80mm	0.110"	2.79mm	N/A	150 PSI	10.35 BAR	N/A	2.30 lb./ft.	3.43 KG/m	50ft
4358-0800-100	8"	204.80mm	0.110"	2.79mm	N/A	150 PSI	10.35 BAR	N/A	2.30 lb./ft.	3.43 KG/m	100ft
4358-1000-050	10"	254.00mm	0.160"	4.06mm	N/A	150 PSI	10.35 BAR	N/A	3.20 lb./ft.	4.77 KG/m	50ft
4358-1000-100	10"	254.00mm	0.160"	4.06mm	N/A	150 PSI	10.35 BAR	N/A	3.20 lb./ft.	4.77 KG/m	100ft
4358-1200-050	12"	304.80mm	0.170"	4.32mm	N/A	150 PSI	10.35 BAR	N/A	3.50 lb./ft.	5.22 KG/m	50ft
4358-1200-100	12"	304.80mm	0.170"	4.32mm	N/A	150 PSI	10.35 BAR	N/A	3.50 lb./ft.	5.22 KG/m	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
