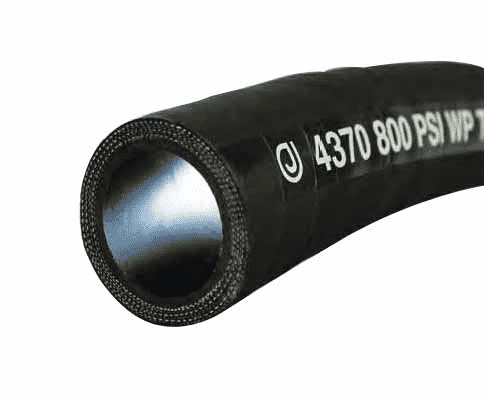

4370-0200-100 by Jason Industrial | 4370 Series | Concrete Placement Hose | 800 PSI | 2" ID | 2.68" OD | Black | Elastomers | 100ft

Save $564.15

$1,974.52

$1,974.52 - $1,974.52

$1,974.52

$1,410.37

$1,410.37 - $1,410.37

$1,410.37

Jason Industrial Inc. Hose - Material Handling Hose - 4370 Concrete Placement Hose - 800 PSI - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 4370-0200-100 Jason \| 100 \|
Series:	4370 Series
Hose Color(s):	Black
Internal Diameter:	2in
Outer Diameter:	2.68in
Tubing Construction:	Elastomer Blend
Cover Construction:	Elastomer Blend
Special Properties:	Static Dissipating Cover, Static Dissipating Tube

SPECIFICATIONS

Other Features:
Application:	High pressure concrete placement applications	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Blend of Synthetic and Natural Elastomers, Black, Smooth and Anti-static
Reinforcement:	Several Spirals of High Tensile Textile Cord	Cover:	Blend of Synthetic and Natural Elastomers, Black, Smooth with a Cloth Impression
Temperature Range:	-22 deg. F (-30 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4370 800 PSI WP TEXTILE CONCRETE PLACEMENT. Clear mylar longitudinal stripe.
Anti-static tube and cover Cover is abrasion, weather and ozone resistant Designed for high kink resistance and perfect flow

Part Number	I.D.		O.D.		Reinforcement Spirals	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4370-0200-050	2"	50.80mm	2.68"	68.00mm	6	800 PSI	55.2 BAR	N/A	1.41 lb./ft.	2.09 KG/m	13.75"	350.00mm	50ft
4370-0200-100	2"	50.80mm	2.68"	68.00mm	6	800 PSI	55.2 BAR	N/A	1.41 lb./ft.	2.09 KG/m	13.75"	350.00mm	100ft
4370-0300-050	3"	76.20mm	3.78"	96.00mm	6	800 PSI	55.2 BAR	N/A	2.40 lb./ft.	3.57 KG/m	16.10"	408.00mm	50ft
4370-0300-100	3"	76.20mm	3.78"	96.00mm	6	800 PSI	55.2 BAR	N/A	2.40 lb./ft.	3.57 KG/m	16.10"	408.00mm	100ft
4370-0400-050	4"	101.60mm	4.96"	126.00mm	8	800 PSI	55.2 BAR	N/A	4.23 lb./ft.	6.29 KG/m	26.00"	660.00mm	50ft
4370-0400-100	4"	101.60mm	4.96"	126.00mm	8	800 PSI	55.2 BAR	N/A	4.23 lb./ft.	6.29 KG/m	26.00"	660.00mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
