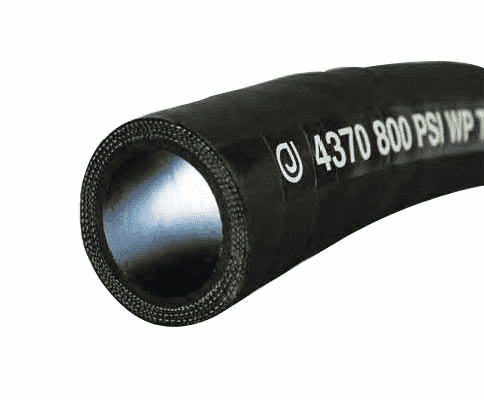

4370-0400-100 by Jason Industrial | 4370 Series | Concrete Placement Hose | 800 PSI | 4" ID | 4.96" OD | Black | Elastomers | 100ft

4370-0400-100 by Jason Industrial | 4370 Series | Concrete Placement Hose | 800 PSI | 4" ID | 4.96" OD | Black | Elastomers | 100ft

Save $1,228.74 Save $1,228.74
$4,300.59
$4,300.59 - $4,300.59
$4,300.59
$3,071.85
$3,071.85 - $3,071.85
$3,071.85

Jason Industrial Inc. Hose - Material Handling Hose - 4370 Concrete Placement Hose - 800 PSI - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 4370-0400-100 Jason | 100 |
Series: 4370 Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.96in
Tubing Construction: Elastomer Blend
Cover Construction: Elastomer Blend
Special Properties: Static Dissipating Cover, Static Dissipating Tube

SPECIFICATIONS

Application: High pressure concrete placement applications SAE Rating: N/A
Other Ratings: N/A Tube: Blend of Synthetic and Natural Elastomers, Black, Smooth and Anti-static
Reinforcement: Several Spirals of High Tensile Textile Cord Cover: Blend of Synthetic and Natural Elastomers, Black, Smooth with a Cloth Impression
Temperature Range: -22 deg. F (-30 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4370 800 PSI WP TEXTILE CONCRETE PLACEMENT. Clear mylar longitudinal stripe.
Other Features:
  • Anti-static tube and cover
  • Cover is abrasion, weather and ozone resistant
  • Designed for high kink resistance and perfect flow
Part Number I.D. O.D. Reinforcement Spirals Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4370-0200-050 2" 50.80mm 2.68" 68.00mm 6 800 PSI 55.2 BAR N/A 1.41 lb./ft. 2.09 KG/m 13.75" 350.00mm 50ft
4370-0200-100 2" 50.80mm 2.68" 68.00mm 6 800 PSI 55.2 BAR N/A 1.41 lb./ft. 2.09 KG/m 13.75" 350.00mm 100ft
4370-0300-050 3" 76.20mm 3.78" 96.00mm 6 800 PSI 55.2 BAR N/A 2.40 lb./ft. 3.57 KG/m 16.10" 408.00mm 50ft
4370-0300-100 3" 76.20mm 3.78" 96.00mm 6 800 PSI 55.2 BAR N/A 2.40 lb./ft. 3.57 KG/m 16.10" 408.00mm 100ft
4370-0400-050 4" 101.60mm 4.96" 126.00mm 8 800 PSI 55.2 BAR N/A 4.23 lb./ft. 6.29 KG/m 26.00" 660.00mm 50ft
4370-0400-100 4" 101.60mm 4.96" 126.00mm 8 800 PSI 55.2 BAR N/A 4.23 lb./ft. 6.29 KG/m 26.00" 660.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
