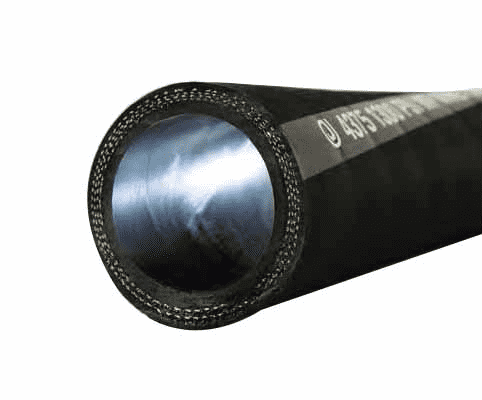

4375-0200-100 by Jason Industrial | 4375 Series | Concrete Placement Hose | 1300 PSI | 2" ID | 2.87" OD | Black | Elastomers | 100ft

Save $18.54

$1,859.87

$1,859.87 - $1,859.87

$1,859.87

$1,841.33

$1,841.33 - $1,841.33

$1,841.33

Jason Industrial Inc. Hose - Material Handling Hose - 4375 Concrete Placement Hose - 1300 PSI - Black

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 4375-0200-100 Jason \| 100 \|
Series:	4375 Series
Hose Color(s):	Black
Internal Diameter:	2in
Outer Diameter:	2.87in
Tubing Construction:	Elastomer Blend
Cover Construction:	Elastomer Blend
Special Properties:	Static Dissipating Cover, Static Dissipating Tube

SPECIFICATIONS

Other Features:
Application:	For very high pressure concrete placement applications	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Blend of Synthetic and Natural Elastomers, Black, Smooth, Anti-static
Reinforcement:	2 or 4-spiral High Tensile Steel Wire	Cover:	Blend of Synthetic and Natural Elastomers, Black, Smooth, Cloth Impression, Anti-static
Temperature Range:	-22 deg. F (-30 deg. C) to +185 deg. F (+85 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4375 1300 PSI WP WIRE CONCRETE PLACEMENT. Clear stripe with reversed lettering
Tube and cover compounds are anti-static Tube is abrasion resistant Cover is abrasion, ozone and weather resistant Designed for high kink resistance and perfect flow

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4375-0200-050	2"	50.80mm	2.87"	73.00mm	2	1300 PSI	89.6 BAR	N/A	1.95 lb./ft.	2.91 KG/m	16.10"	410.00mm	50ft
4375-0200-100	2"	50.80mm	2.87"	73.00mm	2	1300 PSI	89.6 BAR	N/A	1.95 lb./ft.	2.91 KG/m	16.10"	410.00mm	100ft
4375-0300-050	3"	76.20mm	4.02"	102.00mm	4	1300 PSI	89.6 BAR	N/A	3.63 lb./ft.	5.40 KG/m	24.00"	610.00mm	50ft
4375-0300-100	3"	76.20mm	4.02"	102.00mm	4	1300 PSI	89.6 BAR	N/A	3.63 lb./ft.	5.40 KG/m	24.00"	610.00mm	100ft
4375-0400-050	4"	101.60mm	5.12"	130.00mm	4	1300 PSI	89.6 BAR	N/A	5.31 lb./ft.	7.90 KG/m	32.30"	820.00mm	50ft
4375-0400-100	4"	101.60mm	5.12"	130.00mm	4	1300 PSI	89.6 BAR	N/A	5.31 lb./ft.	7.90 KG/m	32.30"	820.00mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
