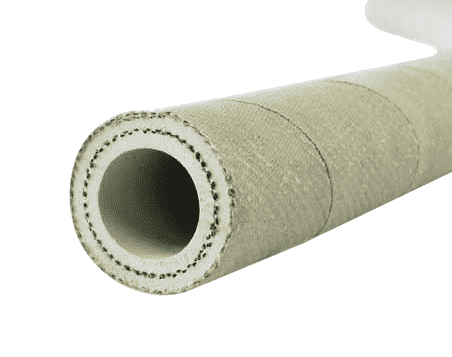

4380-0050-100 by Jason Industrial | 4380 Series | Non-Conductive Furnace Door Hose | 150 PSI | 1/2" ID | 0.91" OD | 100ft

4380-0050-100 by Jason Industrial | 4380 Series | Non-Conductive Furnace Door Hose | 150 PSI | 1/2" ID | 0.91" OD | 100ft

Save $353.48 Save $353.48
$1,237.18
$1,237.18 - $1,237.18
$1,237.18
$883.70
$883.70 - $883.70
$883.70

Jason Industrial Inc. Hose - Water Hose - 4380 Non-Conductive Furnace Door Hose

Package Quantity: 100 FT

Specifications for Variant SKU: 4380-0050-100 Jason | 100 |
Series: 4380 Series
Hose Color(s): White/Off-White
Internal Diameter: 0.50in
Outer Diameter: 0.91in
Tubing Construction: EPDM
Cover Construction: Fiberglass Braid

SPECIFICATIONS

Application: Conveys cooling water to furnace doors in steel mills, glass plants and similar operations. SAE Rating: N/A
Other Ratings: N/A Tube: EPDM, White, Smooth, Non-Conductive
Reinforcement: Two-ply Synthetic Fabric Cover: Glass Fiber Ply Impregnated with Heat and Flame-Resistant Synthetic Rubber
Temperature Range: -40 deg F (-40 deg. C) to +266 deg. F (+130 deg. C) Cover to +575 deg. F (+302 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Superior heat resistant cover resists heat up to +575 deg. F.
  • Resists heat, open flame and splashes of white hot metal to +575 deg. F (+302 deg. C).
  • EPDM tube is non-conductive
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4380-0050-100 1/2" 12.70mm 0.91" 23.11mm 2 150 PSI 10.35 BAR N/A 0.20 lb./ft. 0.30 KG/m 5.00" 127.00mm 100ft
4380-0075-100 3/4" 19.05mm 1.19" 30.23mm 2 150 PSI 10.35 BAR N/A 0.30 lb./ft. 0.45 KG/m 7.50" 190.00mm 100ft
4380-0100-100 1" 25.40mm 1.38" 35.05mm 2 150 PSI 10.35 BAR N/A 0.50 lb./ft. 0.74 KG/m 10.00" 254.00mm 100ft
4380-0125-100 1-1/4" 31.75mm 1.75" 44.45mm 2 150 PSI 10.35 BAR N/A 0.90 lb./ft. 1.34 KG/m 12.60" 320.00mm 100ft
4380-0150-100 1-1/2" 38.10mm 2.00" 50.80mm 2 150 PSI 10.35 BAR N/A 1.00 lb./ft. 1.49 KG/m 15.00" 380.00mm 100ft
4380-0200-100 2" 50.80mm 2.53" 64.26mm 2 150 PSI 10.35 BAR N/A 1.10 lb./ft. 1.64 KG/m 20.00" 508.00mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
