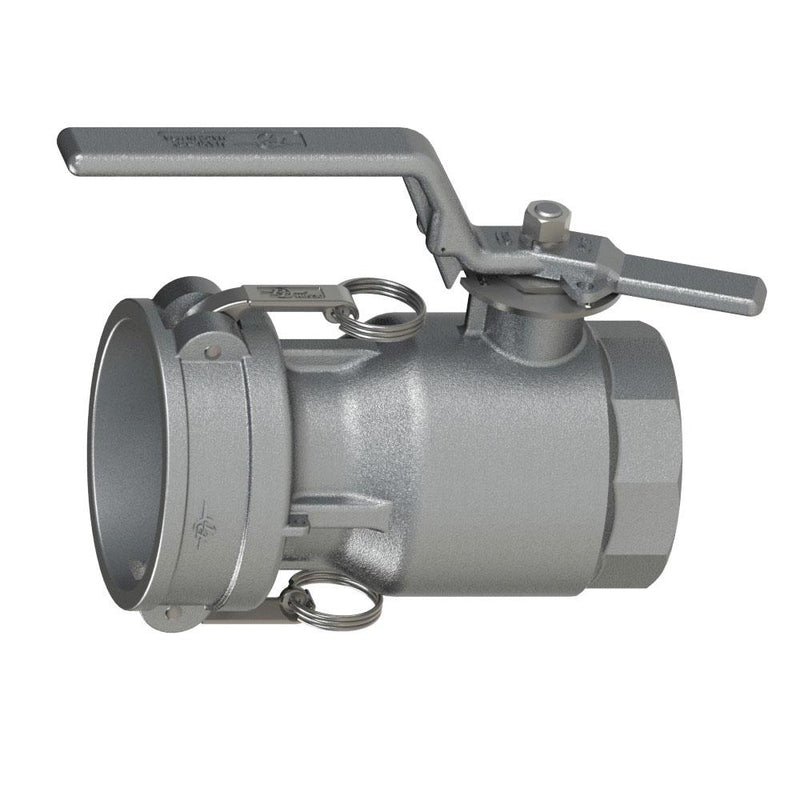

44000200 (MD20D) by PT-Coupling | MAXI-DRY® Dry Disconnect Coupler | Type MDD | 2" Coupler x 2" Female NPT | Stainless Steel | Buna Seal

Save $460.85

$1,241.52

$1,241.52 - $1,241.52

$1,241.52

$780.67

$780.67 - $780.67

$780.67

PT Coupling
Petroleum Handling | MAXI-DRY® Dry Disconnect Coupler | Type MDD | Coupler x Female NPT

Made in the USA.

Specifications for Variant SKU: 44000200 PT-Coupling
Series:	Petroleum Handling
Shape (Orientation):	Straight
Material(s):	Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Overview:
PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA


	Stainless Steel with
Part Name	Buna Seal Item #	Viton® Seal Item #	Teflon® Seal Item #	EPDM Seal Item #	Coupler Size	Female NPT Thread (H)	A	B	C	D	E	F	G	I	Pressure Rating
MD15D	44001500	44001500V	44001500T	44001500E	1-1/2"	1-1/2"	6.9"	1.5"	3.9"	6.1"	4.1"	2.5"	5.0"	2.0"	200 PSI
MD20D	44000200	44000200V	44000200T	44000200E	2"	2-1/2"	7.5"	2.0"	4.4"	6.1"	4.3"	2.5"	5.1"	2.5"	150 PSI
MD30D	44000300	44000300V	44000300T	44000300E	3"	3"	9.5"	2.5"	6.5"	9.0"	5.5"	4.0"	6.0"	4.0"	125 PSI
MD40D	-	44000342V	-	-	4"	4"	9.5"	2.5"	6.5"	9.0"	5.5"	4.0"	6.2"	4.0"	125 PSI

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
