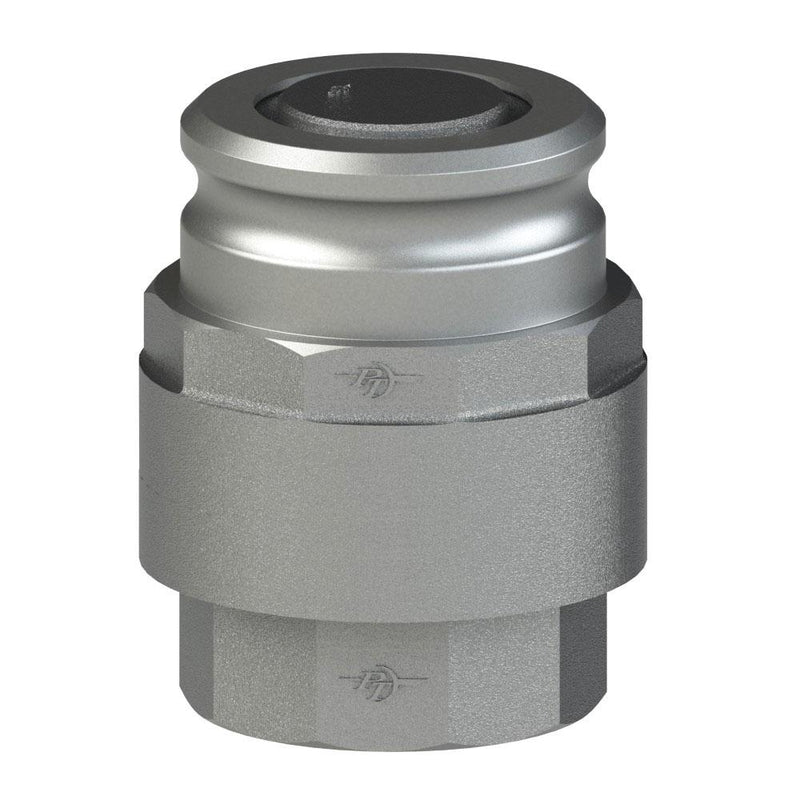

44000230V (MD20A) by PT-Coupling | MAXI-DRY® Dry Disconnect Adapter | 2"Adapter x 2" Female NPT | Stainless Steel | Viton Seal

Name: 44000230V (MD20A) by PT-Coupling | MAXI-DRY® Dry Disconnect Adapter | 2"Adapter x 2" Female NPT | Stainless Steel | Viton Seal
Brand: PT-Coupling
SKU: 44000230V PT-Coupling
Price: 520.79 USD
Availability: InStock

Save $307.43

$828.22

$828.22 - $828.22

$828.22

$520.79

$520.79 - $520.79

$520.79

PT Coupling
Petroleum Handling | MAXI-DRY® Dry Disconnect Adapter | Type MDA | Adapter x Female NPT

Made in the USA.

Specifications for Variant SKU: 44000230V PT-Coupling
Series:	Petroleum Handling
Shape (Orientation):	Straight
Material(s):	Stainless Steel
Seal Material(s):	Viton

Overview:
PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA


	Stainless Steel Adapter with
Part Name	Buna Seal Item #	Viton® Seal Item #	Teflon® Seal Item #	EPDM Seal Item #	Adapter Size	Female NPT Thread (Q)	Overall Length (O)	Width (P)	Coupler Size (R)	Pressure Rating
MD15A	44001530	44001530V	44001530T	-	1-1/2"	1-1/2"	4.3"	3.2"	2"	200 PSI
MD20A	44000230	44000230V	44000230T	44000230E	2"	2"	5.2"	3.7"	2.5"	150 PSI
MD30A	44000330	44000330V	44000330T	-	3"	3"	6.8"	5.6"	4"	125 PSI

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
