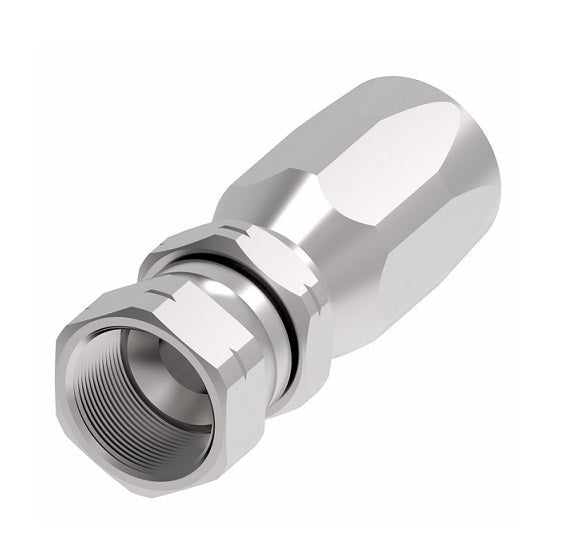

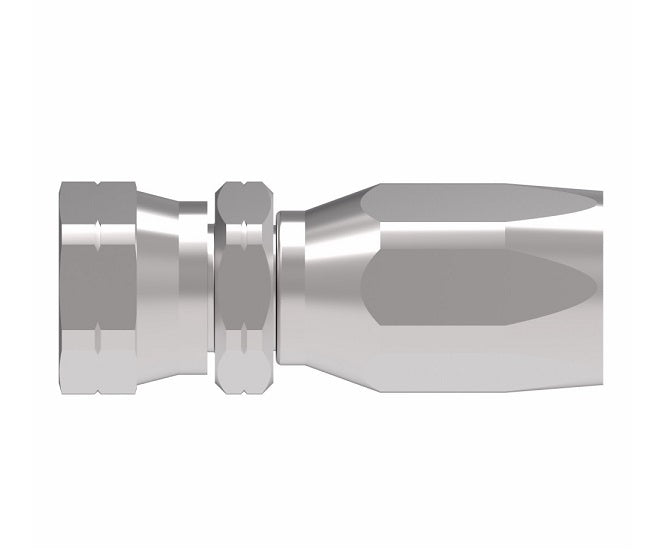

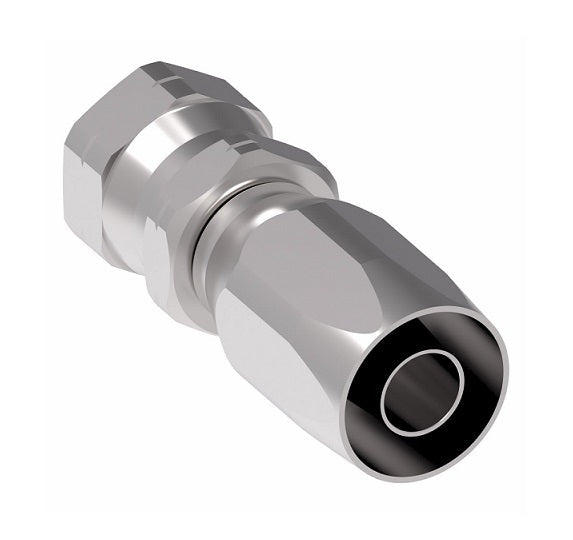

4401-6S Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Reusable Hose Fitting (3 Piece) | -06 Female SAE 45° Swivel x -06 Reusable Hose End | Steel

4401-6S Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Reusable Hose Fitting (3 Piece) | -06 Female SAE 45° Swivel x -06 Reusable Hose End | Steel

Name: 4401-6S Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Reusable Hose Fitting (3 Piece) | -06 Female SAE 45° Swivel x -06 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 4401-6S Danfoss
Price: 11.7 USD
Availability: InStock

$11.70 - $11.70

$11.70

$11.70 - $11.70

$11.70

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female SAE 45° Swivel - Straight

Three Piece Fitting.

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4401-6S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female SAE 45 Flare, 3/8in Reusable Hose End
Special Properties:	Swivel
Compatible with the following Series:	1503 \| 2580 \| 2651 \| FC234 \| FC300 \| FC321 \| FC350 \| FC355 \| FC802

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Brass Part Number	Hose Size	Thread	A	D	EØ
4401-4S	-	-04	7/16-20	1.97"	1.22"	0.13"
4401-5S	-	-05	1/2-20	2.12"	1.34"	0.17"
4401-6S	4401-4B	-06	5/8-18	2.36"	1.46"	0.24"
4401-8S	-	-08	3/4-16	2.78"	1.62"	0.36"
4401-10S	-	-10	7/8-14	3.10"	1.81"	0.46"
4401-12S	-	-12	1-1/16-14	3.49"	1.92"	0.55"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
