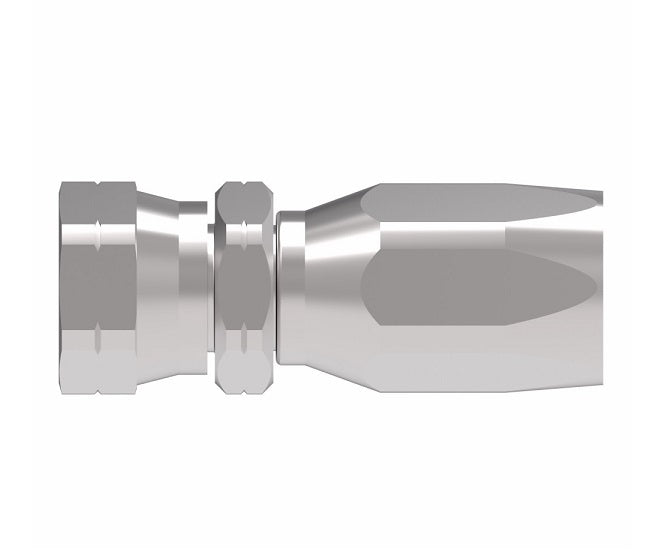

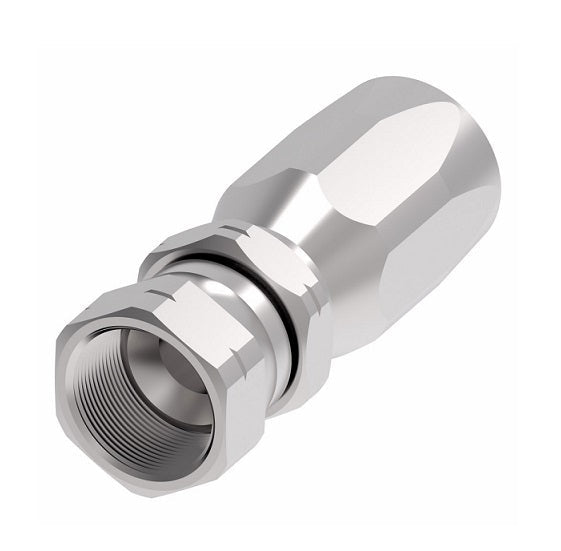

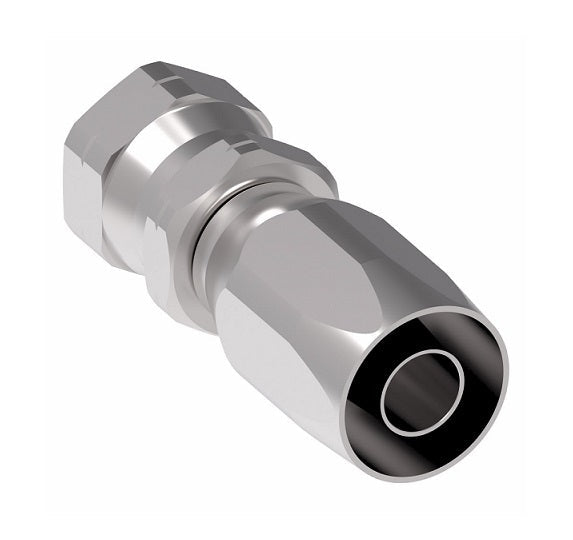

4401-8S Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Reusable Hose Fitting (3 Piece) | -08 Female SAE 45° Swivel x -08 Reusable Hose End | Steel

4401-8S Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Reusable Hose Fitting (3 Piece) | -08 Female SAE 45° Swivel x -08 Reusable Hose End | Steel

Name: 4401-8S Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Reusable Hose Fitting (3 Piece) | -08 Female SAE 45° Swivel x -08 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 4401-8S Danfoss
Price: 15.46 USD
Availability: InStock

$15.46 - $15.46

$15.46

$15.46 - $15.46

$15.46

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female SAE 45° Swivel - Straight

Three Piece Fitting.

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4401-8S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female SAE 45 Flare, 1/2in Reusable Hose End
Special Properties:	Swivel
Compatible with the following Series:	1503 \| 2580 \| 2651 \| FC234 \| FC300 \| FC321 \| FC350 \| FC355 \| FC802

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Brass Part Number	Hose Size	Thread	A	D	EØ
4401-4S	-	-04	7/16-20	1.97"	1.22"	0.13"
4401-5S	-	-05	1/2-20	2.12"	1.34"	0.17"
4401-6S	4401-4B	-06	5/8-18	2.36"	1.46"	0.24"
4401-8S	-	-08	3/4-16	2.78"	1.62"	0.36"
4401-10S	-	-10	7/8-14	3.10"	1.81"	0.46"
4401-12S	-	-12	1-1/16-14	3.49"	1.92"	0.55"
