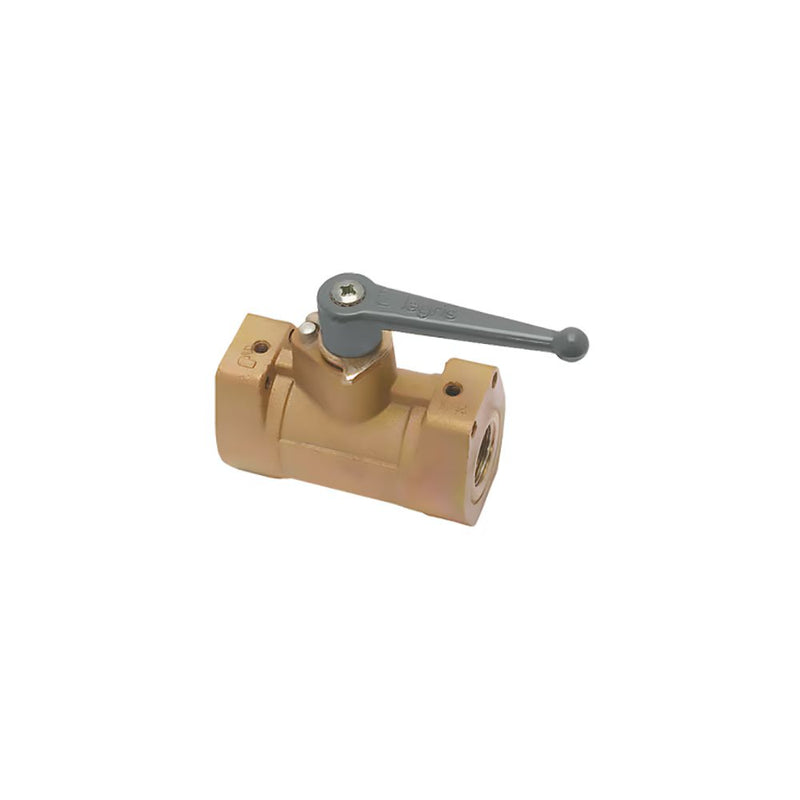

4402 07 13 by Parker | Legris In-Line High Pressure Ball Valve | 1/4" Female BSPP Thread | Straight | Brass | Pack of 5

Save $432.98

$1,082.45

$1,082.45 - $1,082.45

$1,082.45

$649.47

$649.47 - $649.47

$649.47

by Parker Hannifin
High Pressure Series:4402 2/2 In-Line High Pressure Ball Valve, Female BSPP Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 4402 07 13 Parker \| 5 \|
Series:	4402 Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel, Zinc-Plated Steel, Zamak, Brass, Steel
Seal Material(s):	PTFE
Special Properties:	Environmental Resistance, Pressure Resistance, Temperature Resistance

Technical Characteristics:	Compatible Fluids: Compressed air, lubricants, gases Working Pressure: Vacuum to 300 bar Working Temperature: -15°C to +80°C
Advantages:	Low operating torque, even at high pressure Repositionable and exchangeable handles Robust design resistant to high tightening torques Fixing screws for through-bulkhead mounting
Regulations:	PED RoHS REACH
Component Materials:	Body: Dichromate-treated zinc-plated brass Stem seal: PTFE Seat seals: NBR Lever: Zamak Stem: Stainless Steel Wear-compensation seal: NBR Threaded Inserts: Treated steel Reinforcement ring: Treated Steel Ball: Polished Brass


Part Number	Diameter Nominal (DN)	C	E	H1	H2	H3	J	K	L	L1	N	N1	Kg
4402 07 13	7 mm	1/4"	12 mm	50 mm	13 mm	15 mm	30 mm	30 mm	58 mm	25 mm	15 mm	20 mm	.402 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
