Name: 4414-12-10S Aeroquip by Danfoss | Male 37° JIC Flare 100R5 Reusable Hose Fitting | -12 Male 37° JIC Flare x -10 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 4414-12-10S Danfoss
Price: 92.56 USD
Availability: InStock

$92.56 - $92.56

$92.56

$92.56 - $92.56

$92.56

Aeroquip® by Danfoss

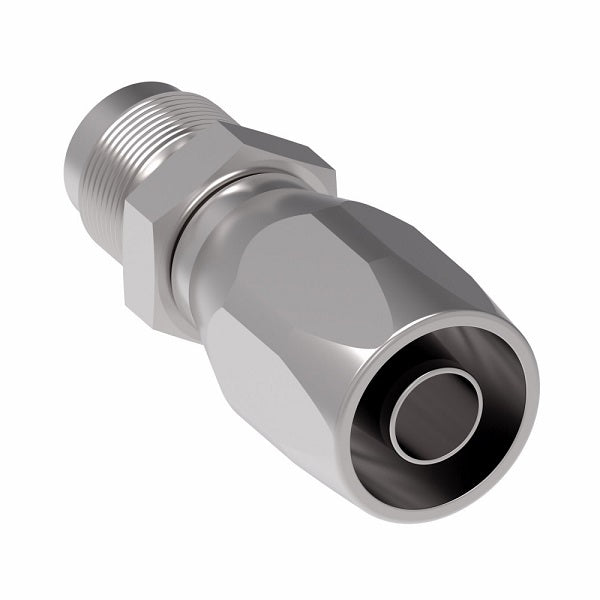

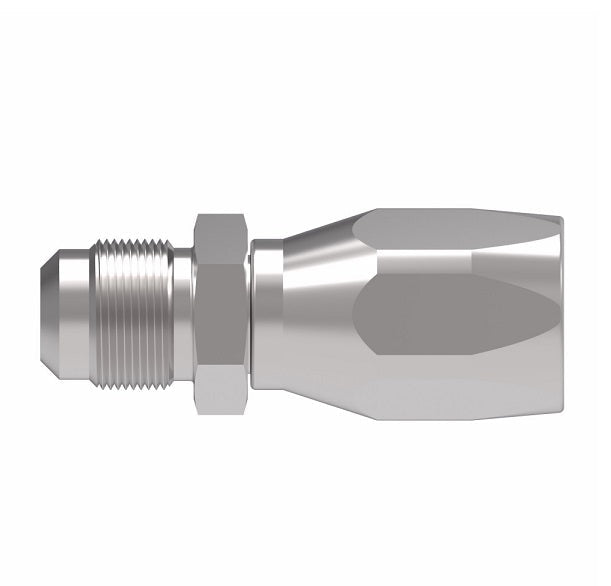

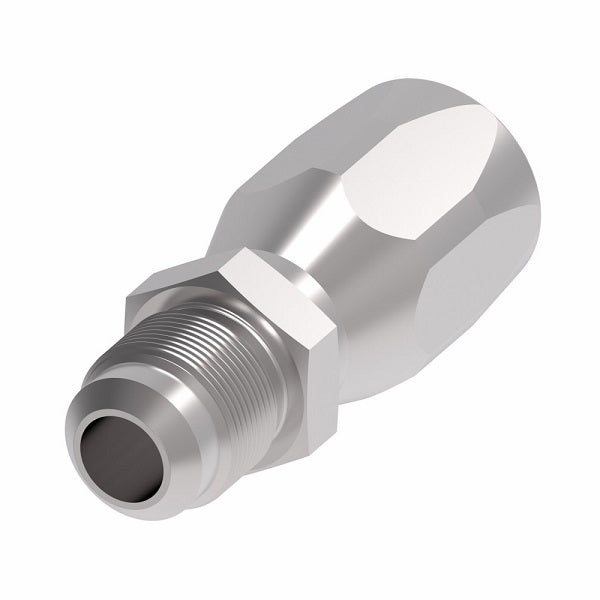

SAE 100R5 Style Reusable Hose Fitting - Male 37° JIC Flare - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4414-12-10S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male JIC, 5/8in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ
4414-4S	-04	7/16-20	1.85"	1.10"	0.13"
4414-5S	-05	1/2-20	1.95"	1.17"	0.17"
4414-6S	-06	9/16-18	2.12"	1.22"	0.24"
4414-8S	-08	3/4-16	2.57"	1.42"	0.36"
4414-10S	-10	7/8-14	2.88"	1.60"	0.46"
4414-12-10S	-10	1-1/16-12	3.05"	1.76"	0.46"
4414-12S	-12	1-1/16-12	3.35"	1.78"	0.55"
4414-16S	-16	1-5/16-12	2.96"	1.69"	0.82"
4414-20S	-20	1-5/8-12	3.22"	1.86"	1.05"
4414-24S	-24	1-7/8-12	3.44"	1.99"	1.28"
