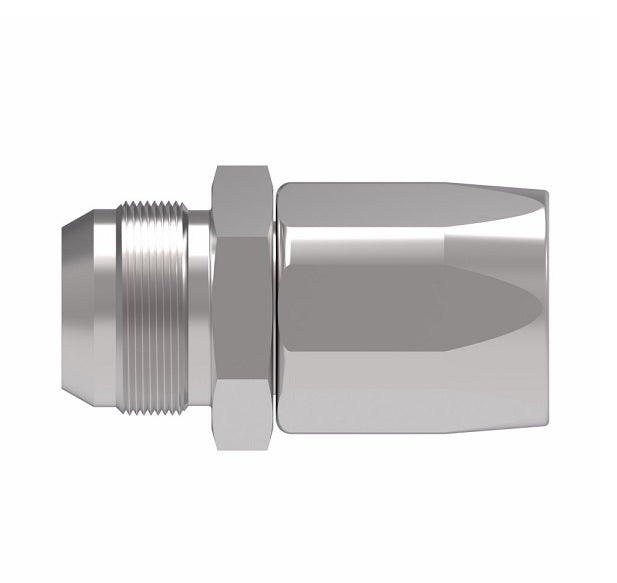

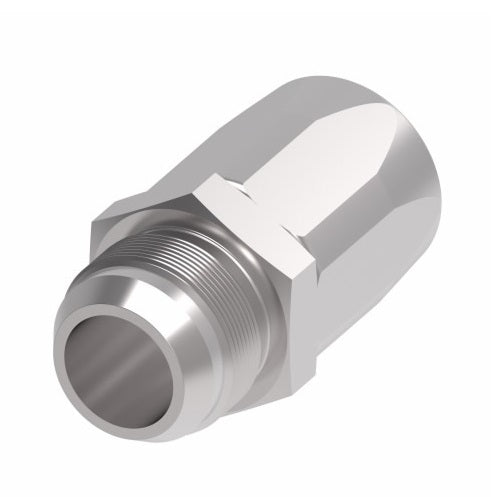

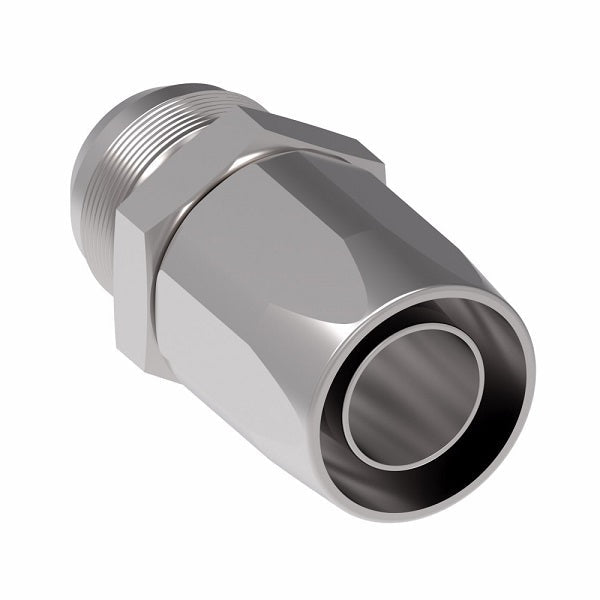

4414-24S Aeroquip by Danfoss | Male 37° JIC Flare 100R5 Reusable Hose Fitting | -24 Male 37° JIC Flare x -24 Reusable Hose End | Steel

4414-24S Aeroquip by Danfoss | Male 37° JIC Flare 100R5 Reusable Hose Fitting | -24 Male 37° JIC Flare x -24 Reusable Hose End | Steel

Name: 4414-24S Aeroquip by Danfoss | Male 37° JIC Flare 100R5 Reusable Hose Fitting | -24 Male 37° JIC Flare x -24 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 4414-24S Danfoss
Price: 265.82 USD
Availability: InStock

$265.82 - $265.82

$265.82

$265.82 - $265.82

$265.82

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Male 37° JIC Flare - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4414-24S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Male JIC, 1-1/2in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ
4414-4S	-04	7/16-20	1.85"	1.10"	0.13"
4414-5S	-05	1/2-20	1.95"	1.17"	0.17"
4414-6S	-06	9/16-18	2.12"	1.22"	0.24"
4414-8S	-08	3/4-16	2.57"	1.42"	0.36"
4414-10S	-10	7/8-14	2.88"	1.60"	0.46"
4414-12-10S	-10	1-1/16-12	3.05"	1.76"	0.46"
4414-12S	-12	1-1/16-12	3.35"	1.78"	0.55"
4414-16S	-16	1-5/16-12	2.96"	1.69"	0.82"
4414-20S	-20	1-5/8-12	3.22"	1.86"	1.05"
4414-24S	-24	1-7/8-12	3.44"	1.99"	1.28"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
