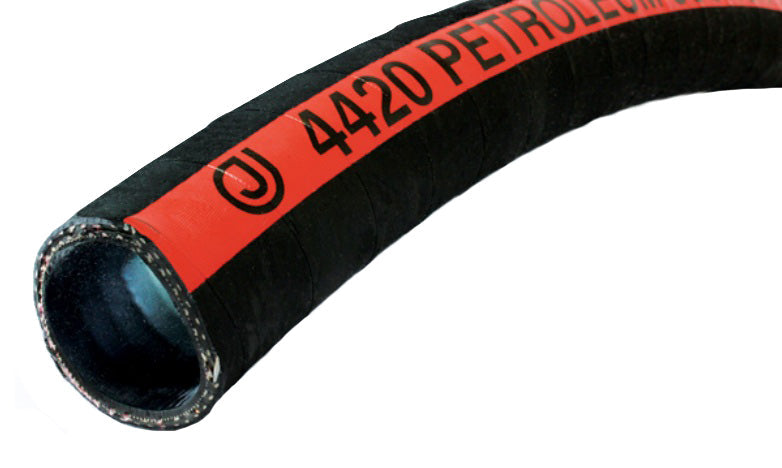

4420-0125-100 by Jason Industrial | 4420 Series | Petroleum Suction Hose | Nitrile | 1-1/4" ID | 1.69" OD | 150 PSI | Black | 100ft

4420-0125-100 by Jason Industrial | 4420 Series | Petroleum Suction Hose | Nitrile | 1-1/4" ID | 1.69" OD | 150 PSI | Black | 100ft

Save $169.28 Save $169.28
$768.54
$768.54 - $768.54
$768.54
$599.26
$599.26 - $599.26
$599.26

Jason Industrial
4420 Series | Petroleum Suction Hose | Black

For suction or discharge of petroleumbased products in truck and car operations.

Package Quantity: 100 FT

Specifications for Variant SKU: 4420-0125-100 Jason | 100 |
Series: 4420 Series
Hose Color(s): Black
Internal Diameter: 1.25in
Outer Diameter: 1.69in
Tubing Construction: Nitrile
Cover Construction: NBR/PVC Blend
Petroleum Hose

Jason Industrial | 4420 Series
Petroleum Suction Hose

1

What is this product used for?
  • For suction or discharge of petroleumbased products in truck and car operations.
2

What are the key specifications?
Tube

Nitrile, Black and Smooth, ARPM Class A.

Cover

NBR/PVC Blend, ARPM Class B

Reinforcement

Two Synthetic Plies with a Dual Wire Helix

Temperature Range

-31°F (-35°C) to +176°F (+80°C)

Colors

Black

Branding

Jason logo 4420 PETROLEUM SUCTION WP 150 PSI 10.35 BAR. Red mylar longitudinal stripe.

Specifications

Tube: ARPM Class A
Cover: ARPM Class B

Design Factor

3:1

3

What are the main product features?
  • Increased flexibility due to the dual wire helix.
  • Nitrile tube is highly oil resistant. Enables hose to handle petroleum products having an aromatic content up to 50%.
  • Weather and ozone resistant.
4

Which sizes or configurations are available?
Part Number ID OD Reinfor-
cement		 Max. Working
Pressure @ 68° F		 Vacuum
@ 68°F		 Weight
(lbs/ft)		 Minimum
Bend Radius		 Length
in mm in mm PSI BAR in of Hg in mm
4420-0075-100 3/4" 19.05mm 1.14" 28.96mm 2 150 PSI 10.35 BAR 29.0 0.36lbs 4.00" 101.60mm 100ft
4420-0100-100 1" 25.40mm 1.38" 35.00mm 2 150 PSI 10.35 BAR 29.0 0.49lbs 6.00" 152.40mm 100ft
4420-0125-100 1-1/4" 31.75mm 1.69" 42.93mm 2 150 PSI 10.35 BAR 29.0 0.81lbs 6.00" 152.40mm 100ft
4420-0150-050 1-1/2" 38.10mm 2.00" 50.80mm 2 150 PSI 10.35 BAR 29.0 0.91lbs 6.50" 165.10mm 100ft
4420-0150-100 1-1/2" 38.10mm 2.00" 50.80mm 2 150 PSI 10.35 BAR 29.0 0.91lbs 6.50" 165.10mm 100ft
4420-0200-100 2" 50.80mm 2.52" 64.01mm 2 150 PSI 10.35 BAR 29.0 1.14lbs 8.00" 203.20mm 200ft
4420-0200-200 2" 50.80mm 2.52" 64.01mm 2 150 PSI 10.35 BAR 29.0 1.14lbs 8.00" 203.20mm 200ft
4420-0250-100 2-1/2" 63.50mm 3.06" 77.72mm 2 150 PSI 10.35 BAR 29.0 1.76lbs 12.00" 304.80mm 100ft
4420-0300-100 3" 76.20mm 3.54" 89.92mm 2 150 PSI 10.35 BAR 29.0 2.42lbs 16.00" 406.40mm 100ft
4420-0300-200 3" 76.20mm 3.54" 89.92mm 2 150 PSI 10.35 BAR 29.0 2.42lbs 16.00" 406.40mm 200ft
4420-0400-100 4" 101.60mm 4.60" 116.84mm 2 150 PSI 10.35 BAR 29.0 2.69lbs 18.00" 457.20mm 100ft
4420-0400-200 4" 101.60mm 4.60" 116.84mm 2 150 PSI 10.35 BAR 29.0 2.69lbs 18.00" 457.20mm 200ft
4420-0600-020 6" 152.40mm 6.86" 174.24mm 2 150 PSI 10.35 BAR 29.0 6.28lbs 30.00" 762.00mm 20ft
4420-0600-100 6" 152.40mm 6.86" 174.24mm 2 150 PSI 10.35 BAR 29.0 6.28lbs 30.00" 762.00mm 100ft
4420-0800-050 8" 203.20mm 8.90" 226.06mm 2 150 PSI 10.35 BAR 29.0 7.12lbs 48.00" 1219.20mm 50ft
i
No by the foot sales. This is a Packaged Length product.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
