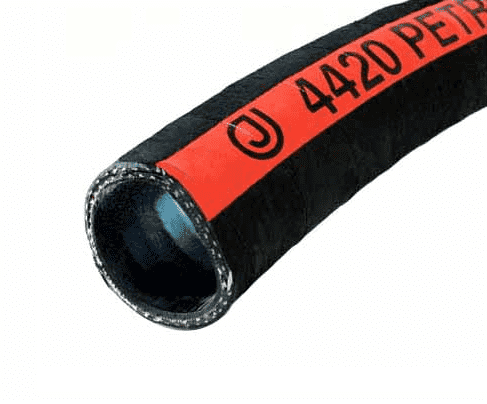

4420-0200-100 by Jason Industrial | 4420 Series | Petroleum Suction Hose | 150 PSI | 2" ID | 2.52" OD | Black | Nitrile | 100ft

4420-0200-100 by Jason Industrial | 4420 Series | Petroleum Suction Hose | 150 PSI | 2" ID | 2.52" OD | Black | Nitrile | 100ft

Save $8.73 Save $8.73
$818.06
$818.06 - $818.06
$818.06
$809.33
$809.33 - $809.33
$809.33

Jason Industrial Inc. Hose - Material Handling Hose - 4420 Nitrile Petroleum Suction Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 4420-0200-100 Jason | 100 |
Series: 4420 Series
Hose Color(s): Black
Internal Diameter: 2in
Outer Diameter: 2.52in
Tubing Construction: Nitrile
Cover Construction: Chloroprene
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: For suction or discharge of petroleumbased products in truck and car operations SAE Rating: N/A
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Smooth, Black, ARPM Class A
Reinforcement: Two Synthetic Plies, Dual Wire Helix Cover: CR, ARPM Class B
Temperature Range: -25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4420 PETROLEUM SUCTION WP 150 PSI 10.35 BAR. Red mylar longitudinal stripe
Other Features:
  • Increased flexibility due to the dual wire helix
  • Nitrile tube is highly oil resistant. Enables hose to handle petroleum products having an aromatic content up to 50%
  • Weather and ozone resistant
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4420-0075-100 3/4" 19.05mm 1.14" 28.96mm 2 150 PSI 10.35 BAR 29.0 inHg 0.36 lb./ft. 0.54 KG/m 4.00" 101.60mm 100ft
4420-0100-100 1" 25.40mm 1.38" 35.00mm 2 150 PSI 10.35 BAR 29.0 inHg 0.49 lb./ft. 0.73 KG/m 6.00" 152.40mm 100ft
4420-0125-100 1-1/4" 31.75mm 1.69" 42.93mm 2 150 PSI 10.35 BAR 29.0 inHg 0.81 lb./ft. 1.21 KG/m 6.00" 152.40mm 100ft
4420-0150-100 1-1/2" 38.10mm 2.00" 50.80mm 2 150 PSI 10.35 BAR 29.0 inHg 0.91 lb./ft. 1.35 KG/m 6.50" 165.10mm 100ft
4420-0200-100 2" 50.80mm 2.52" 64.01mm 2 150 PSI 10.35 BAR 29.0 inHg 1.14 lb./ft. 1.70 KG/m 8.00" 203.20mm 100ft
4420-0200-200 2" 50.80mm 2.52" 64.01mm 2 150 PSI 10.35 BAR 29.0 inHg 1.14 lb./ft. 1.70 KG/m 8.00" 203.20mm 200ft
4420-0250-100 2-1/2" 63.50mm 3.06" 77.72mm 2 150 PSI 10.35 BAR 29.0 inHg 1.76 lb./ft. 2.62 KG/m 12.00" 304.80mm 100ft
4420-0300-100 3" 76.20mm 3.54" 89.92mm 2 150 PSI 10.35 BAR 29.0 inHg 2.42 lb./ft. 3.60 KG/m 16.00" 406.40mm 100ft
4420-0300-200 3" 76.20mm 3.54" 89.92mm 2 150 PSI 10.35 BAR 29.0 inHg 2.42 lb./ft. 3.60 KG/m 16.00" 406.40mm 200ft
4420-0400-100 4" 101.60mm 4.60" 116.84mm 2 150 PSI 10.35 BAR 29.0 inHg 2.69 lb./ft. 4.00 KG/m 18.00" 457.20mm 100ft
4420-0400-200 4" 101.60mm 4.60" 116.84mm 2 150 PSI 10.35 BAR 29.0 inHg 2.69 lb./ft. 4.00 KG/m 18.00" 457.20mm 200ft
4420-0600-020 6" 152.40mm 6.86" 174.24mm 2 150 PSI 10.35 BAR 29.0 inHg 6.28 lb./ft. 9.35 KG/m 30.00" 762.00mm 20ft
4420-0600-100 6" 152.40mm 6.86" 174.24mm 2 150 PSI 10.35 BAR 29.0 inHg 6.28 lb./ft. 9.35 KG/m 30.00" 762.00mm 100ft
4420-0800-050 8" 203.20mm 8.90" 226.06mm 2 150 PSI 10.35 BAR 29.0 inHg 7.12 lb./ft. 10.60 KG/m 48.00" 1219.20mm 50ft
Note:Vacuum is temperature dependent. Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
