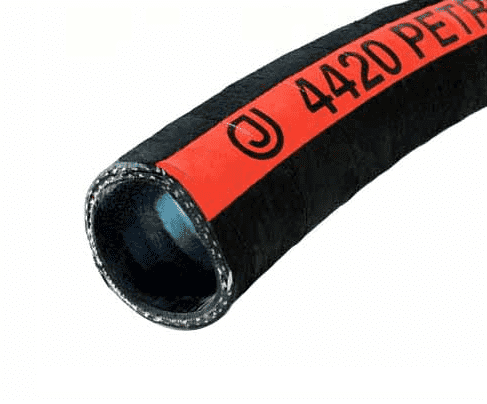

4420-0400-100 by Jason Industrial | 4420 Series | Petroleum Suction Hose | 150 PSI | 4" ID | 4.60" OD | Black | Nitrile | 100ft

4420-0400-100 by Jason Industrial | 4420 Series | Petroleum Suction Hose | 150 PSI | 4" ID | 4.60" OD | Black | Nitrile | 100ft

Save $737.48 Save $737.48
$2,581.18
$2,581.18 - $2,581.18
$2,581.18
$1,843.70
$1,843.70 - $1,843.70
$1,843.70

Jason Industrial Inc. Hose - Material Handling Hose - 4420 Nitrile Petroleum Suction Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 4420-0400-100 Jason | 100 |
Series: 4420 Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.60in
Tubing Construction: Nitrile
Cover Construction: Chloroprene
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: For suction or discharge of petroleumbased products in truck and car operations SAE Rating: N/A
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Smooth, Black, ARPM Class A
Reinforcement: Two Synthetic Plies, Dual Wire Helix Cover: CR, ARPM Class B
Temperature Range: -25 deg. F (-32 deg. C) to +200 deg. F (+93 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4420 PETROLEUM SUCTION WP 150 PSI 10.35 BAR. Red mylar longitudinal stripe
Other Features:
  • Increased flexibility due to the dual wire helix
  • Nitrile tube is highly oil resistant. Enables hose to handle petroleum products having an aromatic content up to 50%
  • Weather and ozone resistant
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4420-0075-100 3/4" 19.05mm 1.14" 28.96mm 2 150 PSI 10.35 BAR 29.0 inHg 0.36 lb./ft. 0.54 KG/m 4.00" 101.60mm 100ft
4420-0100-100 1" 25.40mm 1.38" 35.00mm 2 150 PSI 10.35 BAR 29.0 inHg 0.49 lb./ft. 0.73 KG/m 6.00" 152.40mm 100ft
4420-0125-100 1-1/4" 31.75mm 1.69" 42.93mm 2 150 PSI 10.35 BAR 29.0 inHg 0.81 lb./ft. 1.21 KG/m 6.00" 152.40mm 100ft
4420-0150-100 1-1/2" 38.10mm 2.00" 50.80mm 2 150 PSI 10.35 BAR 29.0 inHg 0.91 lb./ft. 1.35 KG/m 6.50" 165.10mm 100ft
4420-0200-100 2" 50.80mm 2.52" 64.01mm 2 150 PSI 10.35 BAR 29.0 inHg 1.14 lb./ft. 1.70 KG/m 8.00" 203.20mm 100ft
4420-0200-200 2" 50.80mm 2.52" 64.01mm 2 150 PSI 10.35 BAR 29.0 inHg 1.14 lb./ft. 1.70 KG/m 8.00" 203.20mm 200ft
4420-0250-100 2-1/2" 63.50mm 3.06" 77.72mm 2 150 PSI 10.35 BAR 29.0 inHg 1.76 lb./ft. 2.62 KG/m 12.00" 304.80mm 100ft
4420-0300-100 3" 76.20mm 3.54" 89.92mm 2 150 PSI 10.35 BAR 29.0 inHg 2.42 lb./ft. 3.60 KG/m 16.00" 406.40mm 100ft
4420-0300-200 3" 76.20mm 3.54" 89.92mm 2 150 PSI 10.35 BAR 29.0 inHg 2.42 lb./ft. 3.60 KG/m 16.00" 406.40mm 200ft
4420-0400-100 4" 101.60mm 4.60" 116.84mm 2 150 PSI 10.35 BAR 29.0 inHg 2.69 lb./ft. 4.00 KG/m 18.00" 457.20mm 100ft
4420-0400-200 4" 101.60mm 4.60" 116.84mm 2 150 PSI 10.35 BAR 29.0 inHg 2.69 lb./ft. 4.00 KG/m 18.00" 457.20mm 200ft
4420-0600-020 6" 152.40mm 6.86" 174.24mm 2 150 PSI 10.35 BAR 29.0 inHg 6.28 lb./ft. 9.35 KG/m 30.00" 762.00mm 20ft
4420-0600-100 6" 152.40mm 6.86" 174.24mm 2 150 PSI 10.35 BAR 29.0 inHg 6.28 lb./ft. 9.35 KG/m 30.00" 762.00mm 100ft
4420-0800-050 8" 203.20mm 8.90" 226.06mm 2 150 PSI 10.35 BAR 29.0 inHg 7.12 lb./ft. 10.60 KG/m 48.00" 1219.20mm 50ft
Note:Vacuum is temperature dependent. Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
