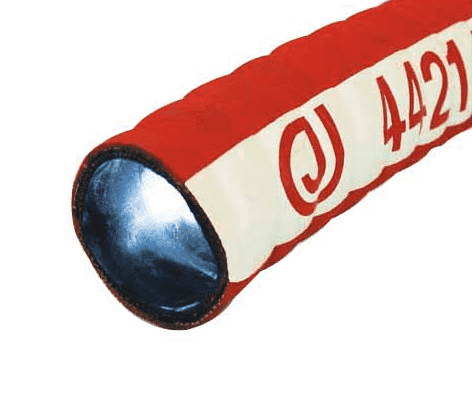

4421-0600-100 by Jason Industrial | 4421 Series | Tank Truck Hose | Corrugated | 150 PSI | 6" ID | 6.77" OD | Red | 100ft

4421-0600-100 by Jason Industrial | 4421 Series | Tank Truck Hose | Corrugated | 150 PSI | 6" ID | 6.77" OD | Red | 100ft

Save $1,977.18 Save $1,977.18
$6,920.14
$6,920.14 - $6,920.14
$6,920.14
$4,942.96
$4,942.96 - $4,942.96
$4,942.96

Jason Industrial Inc. Hose - Material Handling Hose - 4421 Tank Truck Hose - Red Corrugated

Package Quantity: 100 FT

Specifications for Variant SKU: 4421-0600-100 Jason | 100 |
Series: 4421 Series
Hose Color(s): Red
Internal Diameter: 6in
Outer Diameter: 6.77in
Tubing Construction: Nitrile
Cover Construction: Chloroprene
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: For the transfer of petroleum products, including gasoline under pressure, gravity flow and tank farms at oil/gas drilling sites SAE Rating: N/A
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Smooth, ARPM Class A
Reinforcement: Two Synthetic Plies, Wire Helix Cover: CR, ARPM Class B, Corrugated, Red
Temperature Range: -30 deg. F (-34 deg. C) to +180 deg. F (+82 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4421 PETROLEUM SUCTION WP 150 PSI 10.35 BAR. White mylar longitudinal stripe
Other Features:
  • Increased flexibility due to the corrugated cover
  • Lightweight, easier to handle
  • Cover is resistant to weathering and abrasion
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4421-0200-100 2" 50.80mm 2.48" 63.00mm 2 150 PSI 10.35 BAR 29.0 inHg 1.18 lb./ft. 1.76 KG/m 4.00" 101.60mm 100ft
4421-0300-100 3" 76.20mm 3.50" 89.00mm 2 150 PSI 10.35 BAR 29.0 inHg 1.99 lb./ft. 2.96 KG/m 6.00" 152.40mm 100ft
4421-0400-100 4" 101.60mm 4.57" 116.00mm 2 150 PSI 10.35 BAR 29.0 inHg 2.66 lb./ft. 3.96 KG/m 9.00" 228.60mm 100ft
4421-0600-100 6" 152.40mm 6.77" 172.00mm 2 150 PSI 10.35 BAR 29.0 inHg 6.30 lb./ft. 9.41 KG/m 25.00" 637.50mm 100ft
Note:Vacuum is temperature dependent. Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
