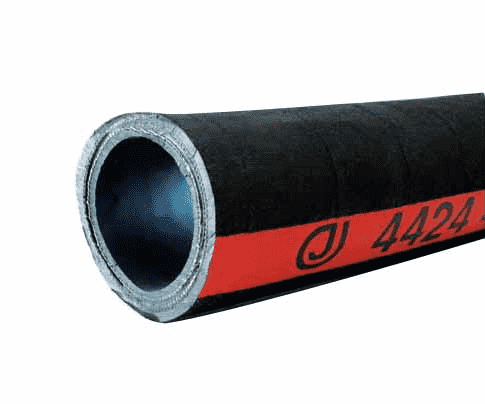

4424-0200-100 by Jason Industrial | 4424 Series | Petroleum Suction Hose | 400 PSI | 2" ID | 2.82" OD | Black | Nitrile | 100ft

Save $616.59

$2,158.07

$2,158.07 - $2,158.07

$2,158.07

$1,541.48

$1,541.48 - $1,541.48

$1,541.48

Jason Industrial Inc. Hose - Material Handling Hose - 4424 Nitrile Petroleum Suction Hose - 400 PSI - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 4424-0200-100 Jason \| 100 \|
Series:	4424 Series
Hose Color(s):	Black
Internal Diameter:	2in
Outer Diameter:	2.82in
Tubing Construction:	Nitrile
Cover Construction:	Chloroprene
Special Properties:	Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	For the transfer of petroleum products, including gasoline under pressure or gravity flow (suction or discharge)	SAE Rating:	N/A
Other Ratings:	Tube: ARPM Class A Cover: ARPM Class B	Tube:	Nitrile, Smooth, Black, ARPM Class A
Reinforcement:	Two-ply Synthetic Fabric, Dual Wire Helix	Cover:	CR, Black, ARPM Class B
Temperature Range:	-31 deg. F (-35 deg. C) to +158 deg. F (+70 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4424 PETROLEUM SUCTION WP 400 PSI 27.6 BAR. Red mylar longitudinal stripe
HD construction that handles up to 400 PSI applications Cover is resistant to weathering and abrasion Heat, sea water and ozone resistant All sizes are full vaccum Construction is with high tensile strength textile Dual copper wires to ground the hose

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4424-0200-100	2"	50.80mm	2.82"	71.63mm	2	400 PSI	27.56 BAR	29.0 inHg	1.89 lb./ft.	2.81 KG/m	12.00"	304.80mm	100ft
4424-0200-200	2"	50.80mm	2.82"	71.63mm	2	400 PSI	27.56 BAR	29.0 inHg	1.89 lb./ft.	2.81 KG/m	12.00"	304.80mm	200ft
4424-0300-100	3"	76.20mm	3.88"	98.55mm	2	400 PSI	27.56 BAR	29.0 inHg	2.95 lb./ft.	4.39 KG/m	20.00"	508.00mm	100ft
4424-0300-200	3"	76.20mm	3.88"	98.55mm	2	400 PSI	27.56 BAR	29.0 inHg	2.95 lb./ft.	4.39 KG/m	20.00"	508.00mm	200ft
4424-0400-100	4"	101.60mm	4.92"	124.50mm	2	400 PSI	27.56 BAR	29.0 inHg	3.85 lb./ft.	5.72 KG/m	30.00"	762.00mm	100ft
4424-0400-200	4"	101.60mm	4.92"	124.50mm	2	400 PSI	27.56 BAR	29.0 inHg	3.85 lb./ft.	5.72 KG/m	30.00"	762.00mm	200ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
