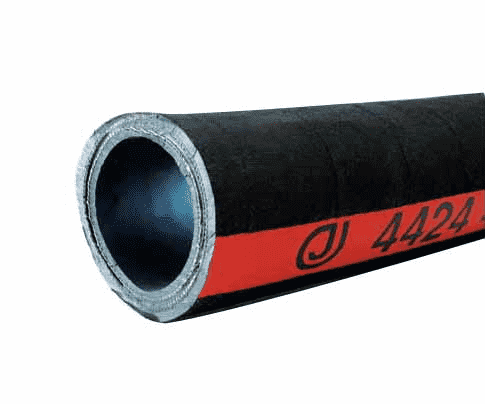

4424-0300-100 by Jason Industrial | 4424 Series | Petroleum Suction Hose | 400 PSI | 3" ID | 3.88" OD | Black | Nitrile | 100ft

4424-0300-100 by Jason Industrial | 4424 Series | Petroleum Suction Hose | 400 PSI | 3" ID | 3.88" OD | Black | Nitrile | 100ft

Save $1,019.56 Save $1,019.56
$3,568.45
$3,568.45 - $3,568.45
$3,568.45
$2,548.89
$2,548.89 - $2,548.89
$2,548.89

Jason Industrial Inc. Hose - Material Handling Hose - 4424 Nitrile Petroleum Suction Hose - 400 PSI - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 4424-0300-100 Jason | 100 |
Series: 4424 Series
Hose Color(s): Black
Internal Diameter: 3in
Outer Diameter: 3.88in
Tubing Construction: Nitrile
Cover Construction: Chloroprene
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: For the transfer of petroleum products, including gasoline under pressure or gravity flow (suction or discharge) SAE Rating: N/A
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Smooth, Black, ARPM Class A
Reinforcement: Two-ply Synthetic Fabric, Dual Wire Helix Cover: CR, Black, ARPM Class B
Temperature Range: -31 deg. F (-35 deg. C) to +158 deg. F (+70 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4424 PETROLEUM SUCTION WP 400 PSI 27.6 BAR. Red mylar longitudinal stripe
Other Features:
  • HD construction that handles up to 400 PSI applications
  • Cover is resistant to weathering and abrasion
  • Heat, sea water and ozone resistant
  • All sizes are full vaccum
  • Construction is with high tensile strength textile
  • Dual copper wires to ground the hose
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4424-0200-100 2" 50.80mm 2.82" 71.63mm 2 400 PSI 27.56 BAR 29.0 inHg 1.89 lb./ft. 2.81 KG/m 12.00" 304.80mm 100ft
4424-0200-200 2" 50.80mm 2.82" 71.63mm 2 400 PSI 27.56 BAR 29.0 inHg 1.89 lb./ft. 2.81 KG/m 12.00" 304.80mm 200ft
4424-0300-100 3" 76.20mm 3.88" 98.55mm 2 400 PSI 27.56 BAR 29.0 inHg 2.95 lb./ft. 4.39 KG/m 20.00" 508.00mm 100ft
4424-0300-200 3" 76.20mm 3.88" 98.55mm 2 400 PSI 27.56 BAR 29.0 inHg 2.95 lb./ft. 4.39 KG/m 20.00" 508.00mm 200ft
4424-0400-100 4" 101.60mm 4.92" 124.50mm 2 400 PSI 27.56 BAR 29.0 inHg 3.85 lb./ft. 5.72 KG/m 30.00" 762.00mm 100ft
4424-0400-200 4" 101.60mm 4.92" 124.50mm 2 400 PSI 27.56 BAR 29.0 inHg 3.85 lb./ft. 5.72 KG/m 30.00" 762.00mm 200ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
