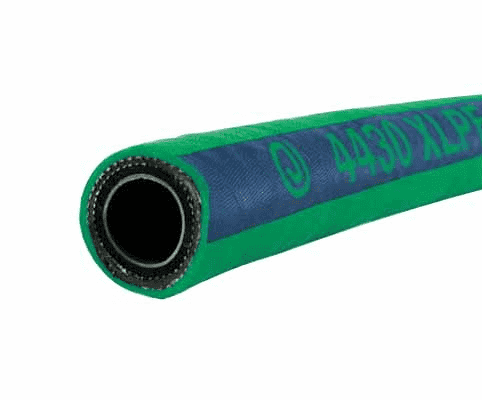

4430-0100-100 by Jason Industrial | 4430 Series | Cross-Linked Suction Hose | 200 PSI | 1" ID | 1.50" OD | Green | Polyethylene | 100ft

Save $8.12

$870.79

$870.79 - $870.79

$870.79

$862.67

$862.67 - $862.67

$862.67

Jason Industrial Inc. Hose - Chemical Hose - 4430 Cross-Linked Polyethylene Suction Hose - Green

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 4430-0100-100 Jason \| 100 \|
Series:	4430 Series
Hose Color(s):	Green
Internal Diameter:	1in
Outer Diameter:	1.50in
Tubing Construction:	XLPE
Cover Construction:	Pin-Pricked EPDM
Special Properties:	Ground Wire in Hose, Static Dissipating Tube

SPECIFICATIONS

Other Features:
Application:	For in-plant or tank truck use to transfer chemicals and solvents.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Clear, Smooth Cross-Linked Polyethylene (XLPE)
Reinforcement:	Two Plies of Synthetic Fabric with a Wire Helix and a Copper Static Wire	Cover:	EPDM, Green with Fabric Impression
Temperature Range:	-40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4430 XLPE ACID CHEMICAL ID WP (PSI) (BAR). Blue mylar longitudinal stripe
Versatile, it handles a variety of chemicals Handles 90% of the chemical/acid applications Reduces the need to stock several types of chemical hoses EPDM cover is heat, weather & abrasion resistant All sizes are full vacuum

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4430-0075-100	3/4"	19.05mm	1.19"	30.23mm	2	200 PSI	13.79 BAR	29.9 inHg	0.36 lb./ft.	0.54 KG/m	6.00"	152.40mm	100ft
4430-0100-100	1"	25.40mm	1.50"	38.10mm	2	200 PSI	13.79 BAR	29.9 inHg	0.46 lb./ft.	0.73 KG/m	6.50"	165.10mm	100ft
4430-0125-100	1-1/4"	31.75mm	1.75"	44.45mm	2	200 PSI	13.79 BAR	29.9 inHg	0.55 lb./ft.	0.82 KG/m	9.00"	228.60mm	100ft
4430-0150-100	1-1/2"	38.10mm	2.09"	53.09mm	2	200 PSI	13.79 BAR	29.9 inHg	0.69 lb./ft.	1.03 KG/m	10.00"	254.00mm	100ft
4430-0200-100	2"	50.80mm	2.61"	66.29mm	2	200 PSI	13.79 BAR	29.9 inHg	0.98 lb./ft.	1.46 KG/m	12.00"	304.80mm	100ft
4430-0250-100	2-1/2"	63.50mm	3.19"	81.03mm	2	150 PSI	10.35 BAR	29.9 inHg	1.35 lb./ft.	2.01 KG/m	15.00"	381.00mm	100ft
4430-0300-100	3"	76.20mm	3.75"	95.25mm	2	150 PSI	10.35 BAR	29.9 inHg	1.90 lb./ft.	2.83 KG/m	16.00"	406.40mm	100ft
4430-0400-100	4"	101.60mm	4.88"	123.95mm	2	150 PSI	10.35 BAR	29.9 inHg	2.57 lb./ft.	3.82 KG/m	18.00"	457.20mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
