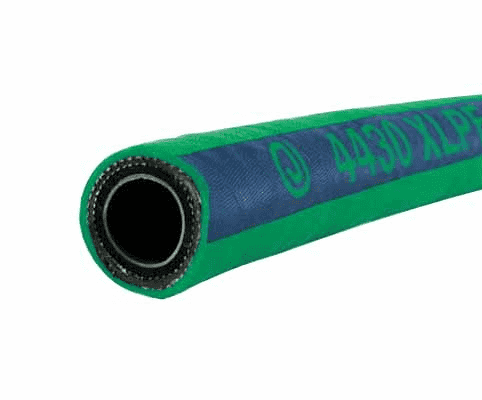

4430-0125-100 by Jason Industrial | 4430 Series | Cross-Linked Suction Hose | 200 PSI | 1-1/4" ID | 1.75" OD | Green | Polyethylene | 100ft

Save $425.78

$1,490.22

$1,490.22 - $1,490.22

$1,490.22

$1,064.44

$1,064.44 - $1,064.44

$1,064.44

Jason Industrial Inc. Hose - Chemical Hose - 4430 Cross-Linked Polyethylene Suction Hose - Green

Package Quantity: 100 FT

Specifications for Variant SKU: 4430-0125-100 Jason \| 100 \|
Series:	4430 Series
Hose Color(s):	Green
Internal Diameter:	1.25in
Outer Diameter:	1.75in
Tubing Construction:	XLPE
Cover Construction:	Pin-Pricked EPDM
Special Properties:	Ground Wire in Hose, Static Dissipating Tube

SPECIFICATIONS

Other Features:
Application:	For in-plant or tank truck use to transfer chemicals and solvents.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Clear, Smooth Cross-Linked Polyethylene (XLPE)
Reinforcement:	Two Plies of Synthetic Fabric with a Wire Helix and a Copper Static Wire	Cover:	EPDM, Green with Fabric Impression
Temperature Range:	-40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4430 XLPE ACID CHEMICAL ID WP (PSI) (BAR). Blue mylar longitudinal stripe
Versatile, it handles a variety of chemicals Handles 90% of the chemical/acid applications Reduces the need to stock several types of chemical hoses EPDM cover is heat, weather & abrasion resistant All sizes are full vacuum

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4430-0075-100	3/4"	19.05mm	1.19"	30.23mm	2	200 PSI	13.79 BAR	29.9 inHg	0.36 lb./ft.	0.54 KG/m	6.00"	152.40mm	100ft
4430-0100-100	1"	25.40mm	1.50"	38.10mm	2	200 PSI	13.79 BAR	29.9 inHg	0.46 lb./ft.	0.73 KG/m	6.50"	165.10mm	100ft
4430-0125-100	1-1/4"	31.75mm	1.75"	44.45mm	2	200 PSI	13.79 BAR	29.9 inHg	0.55 lb./ft.	0.82 KG/m	9.00"	228.60mm	100ft
4430-0150-100	1-1/2"	38.10mm	2.09"	53.09mm	2	200 PSI	13.79 BAR	29.9 inHg	0.69 lb./ft.	1.03 KG/m	10.00"	254.00mm	100ft
4430-0200-100	2"	50.80mm	2.61"	66.29mm	2	200 PSI	13.79 BAR	29.9 inHg	0.98 lb./ft.	1.46 KG/m	12.00"	304.80mm	100ft
4430-0250-100	2-1/2"	63.50mm	3.19"	81.03mm	2	150 PSI	10.35 BAR	29.9 inHg	1.35 lb./ft.	2.01 KG/m	15.00"	381.00mm	100ft
4430-0300-100	3"	76.20mm	3.75"	95.25mm	2	150 PSI	10.35 BAR	29.9 inHg	1.90 lb./ft.	2.83 KG/m	16.00"	406.40mm	100ft
4430-0400-100	4"	101.60mm	4.88"	123.95mm	2	150 PSI	10.35 BAR	29.9 inHg	2.57 lb./ft.	3.82 KG/m	18.00"	457.20mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
