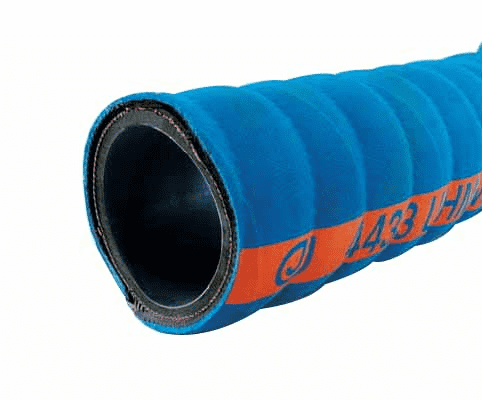

4433-0075-100 by Jason Industrial | 4433 Series | Chemical Suction Hose | 200 PSI | 3/4" ID | 1.14" OD | Blue | UHMWPE | 100ft

Save $354.96

$1,242.37

$1,242.37 - $1,242.37

$1,242.37

$887.41

$887.41 - $887.41

$887.41

Jason Industrial Inc. Hose - Chemical Hose - 4433 UHMWPE Chemical Suction Hose - Blue

Package Quantity: 100 FT

Specifications for Variant SKU: 4433-0075-100 Jason \| 100 \|
Series:	4433 Series
Hose Color(s):	Blue
Internal Diameter:	0.75in
Outer Diameter:	1.14in
Tubing Construction:	Ultra High Molecular Weight Polyethylene
Cover Construction:	EPDM

SPECIFICATIONS

Other Features:
Application:	For in-plant or tank truck use to transfer chemicals and solvents.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Ultra-High Molecular Weight Polyethylene (UHMWPE)
Reinforcement:	Two Plies of Synthetic Fabric with a Wire Helix	Cover:	EPDM, Blue, Corrugated
Temperature Range:	-40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4433 UHMWPE ACID CHEMICAL ID WP (PSI) (BAR). Orange mylar longitudinal stripe.
Corrugations make the hose flexible Handles 98% of the chemical/acid applications Reduces the need to stock several types of chemical hoses EPDM cover is heat, weather & abrasion resistant All sizes are full vacuum

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4433-0075-100	3/4"	19.05mm	1.14"	28.96mm	2	200 PSI	13.79 BAR	29.9 inHg	0.38 lb./ft.	0.57 KG/m	6.00"	152.40mm	100ft
4433-0100-100	1"	25.40mm	1.46"	37.08mm	2	200 PSI	13.79 BAR	29.9 inHg	0.50 lb./ft.	0.74 KG/m	6.50"	165.10mm	100ft
4433-0125-100	1-1/4"	31.75mm	1.77"	44.96mm	2	200 PSI	13.79 BAR	29.9 inHg	0.58 lb./ft.	0.86 KG/m	9.00"	228.60mm	100ft
4433-0150-100	1-1/2"	38.10mm	2.05"	52.07mm	2	200 PSI	13.79 BAR	29.9 inHg	0.71 lb./ft.	1.06 KG/m	10.00"	254.00mm	100ft
4433-0200-100	2"	50.80mm	2.64"	67.06mm	2	200 PSI	13.79 BAR	29.9 inHg	1.01 lb./ft.	1.50 KG/m	12.00"	304.80mm	100ft
4433-0250-100	2-1/2"	63.50mm	3.15"	80.01mm	2	200 PSI	13.79 BAR	29.9 inHg	1.46 lb./ft.	2.17 KG/m	15.00"	381.00mm	100ft
4433-0300-100	3"	76.20mm	3.86"	98.04mm	2	200 PSI	13.79 BAR	29.9 inHg	1.97 lb./ft.	2.93 KG/m	16.00"	406.40mm	100ft
4433-0400-100	4"	101.60mm	4.72"	119.89mm	2	150 PSI	10.35 BAR	29.9 inHg	2.60 lb./ft.	3.87 KG/m	18.00"	457.20mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
