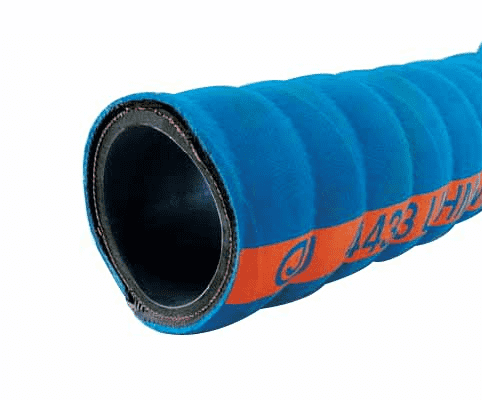

4433-0250-100 by Jason Industrial | 4433 Series | Chemical Suction Hose | 200 PSI | 2-1/2" ID | 3.15" OD | Blue | UHMWPE | 100ft

Save $19.86

$2,025.19

$2,025.19 - $2,025.19

$2,025.19

$2,005.33

$2,005.33 - $2,005.33

$2,005.33

Jason Industrial Inc. Hose - Chemical Hose - 4433 UHMWPE Chemical Suction Hose - Blue

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 4433-0250-100 Jason \| 100 \|
Series:	4433 Series
Hose Color(s):	Blue
Internal Diameter:	2.50in
Outer Diameter:	3.15in
Tubing Construction:	Ultra High Molecular Weight Polyethylene
Cover Construction:	EPDM

SPECIFICATIONS

Other Features:
Application:	For in-plant or tank truck use to transfer chemicals and solvents.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Ultra-High Molecular Weight Polyethylene (UHMWPE)
Reinforcement:	Two Plies of Synthetic Fabric with a Wire Helix	Cover:	EPDM, Blue, Corrugated
Temperature Range:	-40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4433 UHMWPE ACID CHEMICAL ID WP (PSI) (BAR). Orange mylar longitudinal stripe.
Corrugations make the hose flexible Handles 98% of the chemical/acid applications Reduces the need to stock several types of chemical hoses EPDM cover is heat, weather & abrasion resistant All sizes are full vacuum

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4433-0075-100	3/4"	19.05mm	1.14"	28.96mm	2	200 PSI	13.79 BAR	29.9 inHg	0.38 lb./ft.	0.57 KG/m	6.00"	152.40mm	100ft
4433-0100-100	1"	25.40mm	1.46"	37.08mm	2	200 PSI	13.79 BAR	29.9 inHg	0.50 lb./ft.	0.74 KG/m	6.50"	165.10mm	100ft
4433-0125-100	1-1/4"	31.75mm	1.77"	44.96mm	2	200 PSI	13.79 BAR	29.9 inHg	0.58 lb./ft.	0.86 KG/m	9.00"	228.60mm	100ft
4433-0150-100	1-1/2"	38.10mm	2.05"	52.07mm	2	200 PSI	13.79 BAR	29.9 inHg	0.71 lb./ft.	1.06 KG/m	10.00"	254.00mm	100ft
4433-0200-100	2"	50.80mm	2.64"	67.06mm	2	200 PSI	13.79 BAR	29.9 inHg	1.01 lb./ft.	1.50 KG/m	12.00"	304.80mm	100ft
4433-0250-100	2-1/2"	63.50mm	3.15"	80.01mm	2	200 PSI	13.79 BAR	29.9 inHg	1.46 lb./ft.	2.17 KG/m	15.00"	381.00mm	100ft
4433-0300-100	3"	76.20mm	3.86"	98.04mm	2	200 PSI	13.79 BAR	29.9 inHg	1.97 lb./ft.	2.93 KG/m	16.00"	406.40mm	100ft
4433-0400-100	4"	101.60mm	4.72"	119.89mm	2	150 PSI	10.35 BAR	29.9 inHg	2.60 lb./ft.	3.87 KG/m	18.00"	457.20mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
