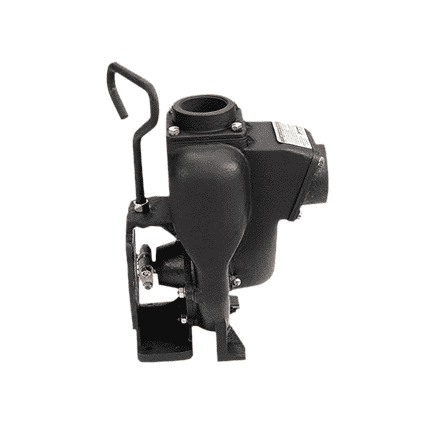

444POI Banjo 4" 444 Series Cast Iron Pump Only with 1-1/8" x 3-1/2" Shaft & 6 Vane Impeller Unassembled

444POI by Banjo | Centrifugal Pumps | 4" 444 Series Cast Iron Pump Only with 1-1/8" x 3-1/2" Shaft | 6 Vane Impeller Unassembled

Save $1,244.66 Save $1,244.66
$3,111.65
$3,111.65 - $3,111.65
$3,111.65
$1,866.99
$1,866.99 - $1,866.99
$1,866.99

Banjo Self-Priming Centrifugal Pumps - 4" 444 Series Cast Iron Pumps with Gas Engines & Replacement Parts
Specifications for Variant SKU: 444POI Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Product Manual: 3" & 4" Cast Iron Centrifugal Pump Instruction Manual Video: N/A
Replacement Parts: Replacement Parts for 4" 444 Series Cast Iron Pumps with Gas Engines
Features:
  • Durable cast iron construction
  • Dynamically balanced impeller
  • Replaceable inlet and outlet flanges
  • Graphite loaded silicon carbide seal with stainless steel cup and spring with FKM (viton type) rubber
  • Pump end separated from engine
  • Large weep holes between pump end and engine
  • "V" Shaped for quicker priming
Notes:
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
  • NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
Part Number Description Horsepower
4" 444 Series Cast Iron Pumps with Gas Engines
444PIH24 4" Cast Iron Pump with 24 HP Honda® Engine 24 HP (Made to Order)
4" 444 Series Cast Iron Bearing Pedestal
444PBI 4" Cast Iron Bearing Pedestal with 1" Shaft N/A (Made to Order)
4" 444 Series Cast Iron Pump Only
444POI 4" Cast Iron Pump Only with 1-1/8" x 3-1/2" Shaft & 6 Vane Impeller Unassembled N/A (Made to Order)
Replacement Parts for 444PBI & 433PBI
Item Part Number Description Quantity Required
Not Shown 16099 Impeller Removal Bolt 1
1 18500 Bearing Pedestal 1
2 16703 Rear Bracket (444PBI) 1
2 16704 Rear Bracket (433PBI) 1
3 16713 Mechanical Seal 1
4 16710 O-Ring 1
5 17704 3/8" - 16 x 1.25" SS Cap Screw 4
6 V20018 3/8" SS Lock Washer 17
7 16772 4" Impeller - 5 Vane (444PBI) 1
7 16773 3" Impeller (433PBI) 1
8 16901 1/4" SQ. 3/4" Key Stock 1
9 16765 Impeller Bolt 1
10 16019 Gasket Set 1
11 16702 Volute 1
13 16712 Body (444PBI) 1
13 16743 Body (433PBI) 1
14 18511 Adapter Plate 1
15 18512 3/8" - 16 x 0.875" SS HHCS 4
Not Shown 16751 Bracket Shim Set 1
Not Shown 16752 Impeller Shim 1
Not Shown 18033 Handle 1
Not Shown 18034 5/8" SS Jam Nut 1
16 16000 4" Outlet Flange (444PBI) 1
16 16001 3" Outlet Flange (433PBI) 1
17 16002 Inlet Flange 1
18 16706 Inlet Gasket with Check 1
19 16011 Outlet Gasket 1
20 13777 3/4" Plug 2
21 18027 3/8" - 16 x 1.50" HHCS 8
22 V20018 3/8" SS Lock Washer 8
23 13778 O-Ring 2
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
